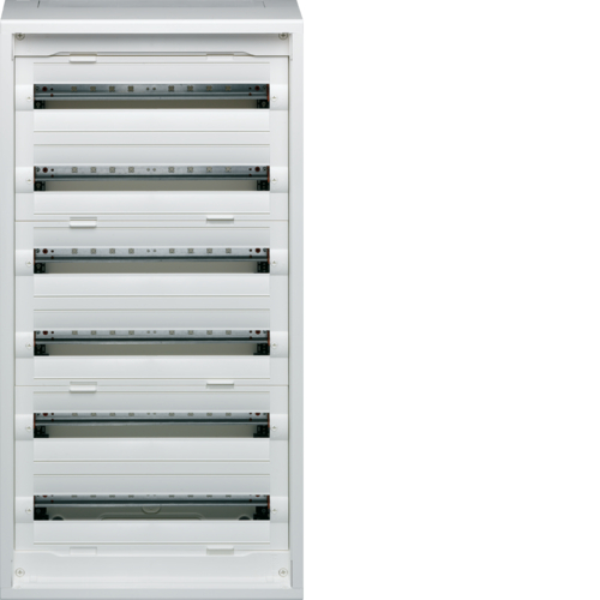

72 WAY VEGA-D SURFACE MOUNTING DISTRIBUTION BOARD (H) 1050 x (W) 550 x (D) 193
SKU: FD62DN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The NewVegaD series of surface-mounted distribution boards, including the Hager FD62DN, is made to offer a dependable and well-organized solution for electrical installations.
This enclosure provides a reliable and effective method of managing electrical circuits and is appropriate for both home and commercial applications.
Durable performance and safety are guaranteed by the FD62DN's premium build and user-friendly design.
Because it can hold up to 144 modules, it is perfect for intricate electrical configurations.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Code: FD62DN.
EAN: 3250612548309.
Compatibility: Hager VegaD enclosures.
Material: Plastic/metal with powder-coated surface treatment.
Colour: Pure white (RAL 9010).
Installation: Surface mounting.
Dimensions:
Depth: 193 mm.
Height: 1050 mm.
Width: 550 mm.
Width in Division Units: 24.
Number of Modules: 144.
Number of Rows: 6.
Quantity of Rails: 6.
Main Electrical Features:
Nominal Voltage: 230/400 V.
Rated Current: 160 A.
Cover and Door:
Cover Type: With notch.
Door Locking: Without.
Transparent Cover or Door: No.
Connection:
Number of Conduit Inlets: 4.
Number of Openings for Flange Plates: 2.
Compliance:
REACH Conform: No.
RoHS Conform: Yes.
Halogen Free: No.
Protection Index:
IP30/IK07 (without door).
IP41/IK08 (with door).
Packaging: 1 piece per package.
