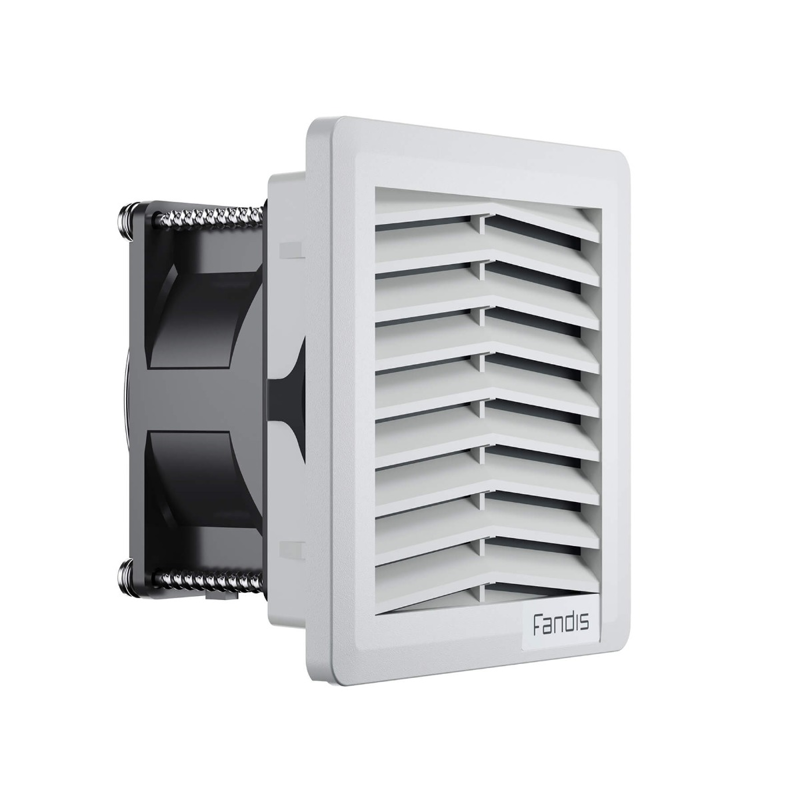

FAN-FILTER UNIT 230VAC 107x107mm
SKU: FF08A230UN
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Complete fan-filter units of the FF series:
The knowledge gathered in the field of control cabinet ventilation led to the creation of Fandis fan-filter units.
Its snap-on attachment, compact design, and integrated sealing gasket stop water and dust infiltration. Perfect for any application involving panel ventilation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: FF series
VOLTAGE: 230 VAC
POWER (W): 10
AIR FLOW (M³/H): 12/16
NOISE (dB/A): 31
DESCRIPTION: Complete fan filter
INDEX PROTECTION IP: IP54
FRAME DIMENSIONS (MM²): 107
CUTOUT DIMENSIONS (MM²): 92
Features:
Shielded self lubricating ball bearing fans
Plastic parts self extinguishing to UL 94V-0
Filter replaceable from the front removable grill
Permanent sealing gasket in polyurethane foam
Screwless mounting (simply clips into panel cut-out)
Complete fan with mounting frame, removable filter and metal finger guard
