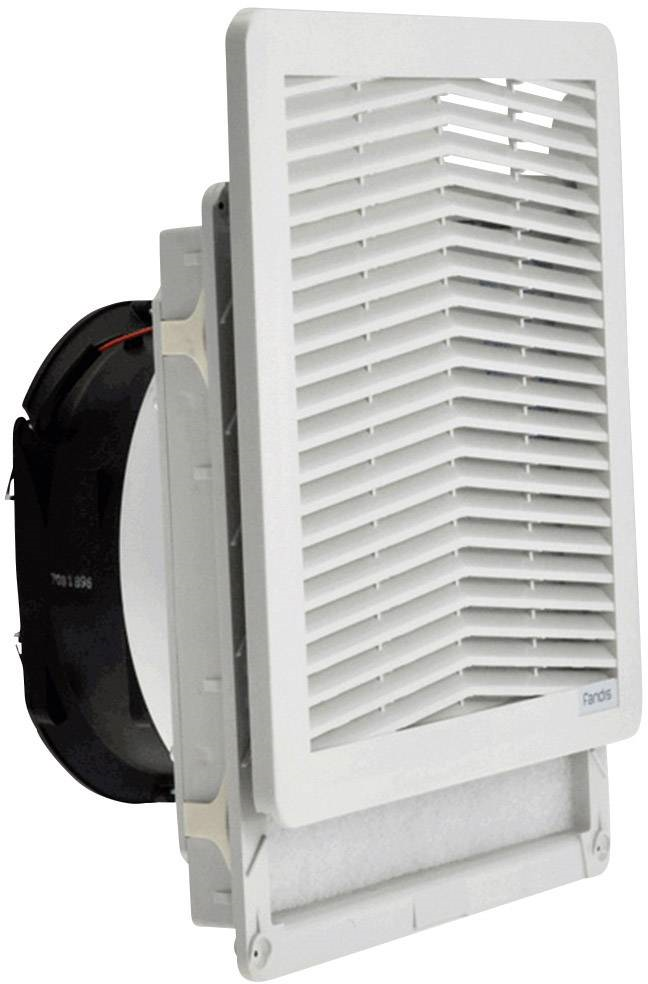

FAN-FILTER UNIT 230VAC 250x250mm
SKU: FF15A230UF
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Complete fan-filter units of the FF series:
The knowledge gathered in the field of control cabinet ventilation led to the creation of Fandis fan-filter units.
Its snap-on attachment, compact design, and integrated sealing gasket stop water and dust infiltration.
Perfect for any application involving panel ventilation.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Ball bearing fans with shields and self-lubrication.
UL 94V-0 certified plastic components self-extinguish.
Removable front grill with replacement filter.
Polyurethane foam with a permanent sealing gasket.
Screwless mounting just clip into the opening in the panel.
Complete fan with detachable filter, aluminium finger guard, and mounting frame.
Specifications:
SERIES: FF series
VOLTAGE: 230 VAC.
POWER (W): 32
AIR FLOW (M³/H): 230
NOISE (dB/A): 50
DESCRIPTION: Complete fan filter
INDEX PROTECTION IP: IP54
FRAME DIMENSIONS (MM²): 250
CUTOUT DIMENSIONS (MM²): 225
