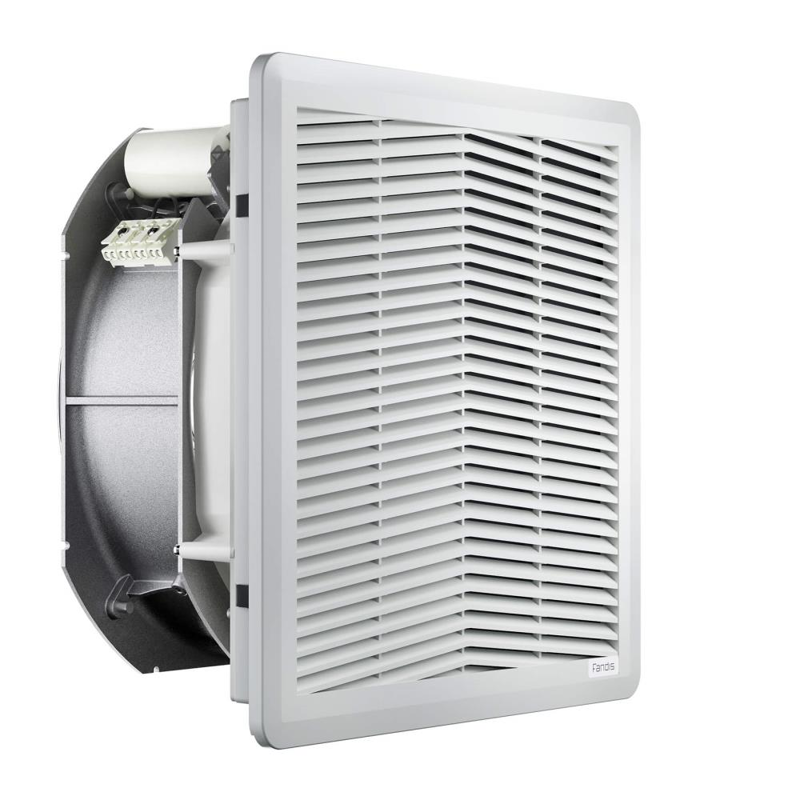

FAN-FILTER UNIT 230VAC 325x325mm
SKU: FF20A230UE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Complete fan-filter units of the FF series:
The knowledge gathered in the field of control cabinet ventilation led to the creation of Fandis fan-filter units.
Its Snap-On attachment, compact design, and integrated sealing gasket stop water and dust infiltration. Perfect for any application involving panel ventilation.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Self-lubricating ball bearing fans with shields.
According to UL 94V-0, plastic components self-extinguish.
Replaceable filter accessible from the front detachable grill.
Polyurethane foam gasket with permanent sealing.
Mounting without screws—just clip into the panel cutout.
Complete fan with metal finger protection, detachable filter, and mounting frame.
Specifications:
SERIES: FF series
VOLTAGE: 230 VAC.
POWER (W): 67
AIR FLOW (M³/H): 520
NOISE (dB/A): 60
DESCRIPTION: Complete fan filter
INDEX PROTECTION IP: IP54
FRAME DIMENSIONS (MM²): 325
CUTOUT DIMENSIONS (MM²): 292
