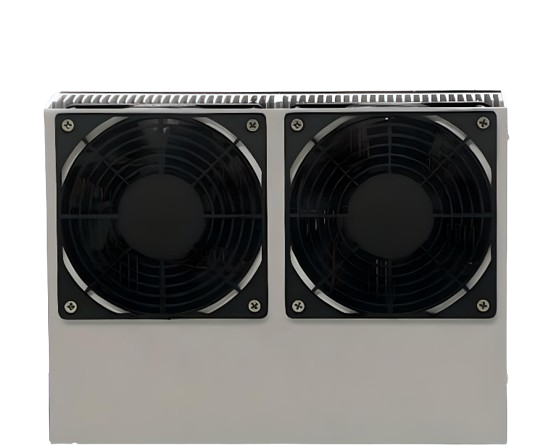

AC Switch Cabinet Cooler, Size 2, 100 W
SKU: FL-208-AC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Switch Cabinet Cooler AC Series:
There are three sizes and two power ratings available for the switch cabinet coolers in the "AC" series.
The outside of the units has integrated power supplies.
As a result, the "AC" series devices can run on regular mains voltage and there won't be any additional power loss from a power supply inside the cabinet.
Alarm relays and overheat protection are installed on all switch cabinet coolers in the "AC" series.
All switch cabinet coolers in the "AC" series have an IP67-rated external design.
The "AC" series units should only be used for cooling; they are not meant for heating.
On request, a technique for alternating between heating and cooling is offered, though.
Buy currently uses Select Automation shop pricing and checkout.
Switch Cabinet Cooler:
Supply voltage: 24 V - DC
Rated input: 100 W
Cooling power (L35 / L35): 106 W
Max. input current: 7 A
Rated current: 4,2 A
Weight: app. 5 kg
Protection classification outer side (warm): IP67
Protection classification internal side (cold): IP20
Operational temperature range: -40 °C to 70 °C
Storage temperature range: -40 °C to 70 °C
Alarm transductor: NO-contact, max. 30 V-DC, 5 A
Switch point fault message: +80°C (+/- 5°C) heat sink temperature
Switch point safety shutdown: +90°C (+/- 5°C) heat sink temperature
