800x600x300 IP65 POLYESTER ENCL.
SKU: FL229B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

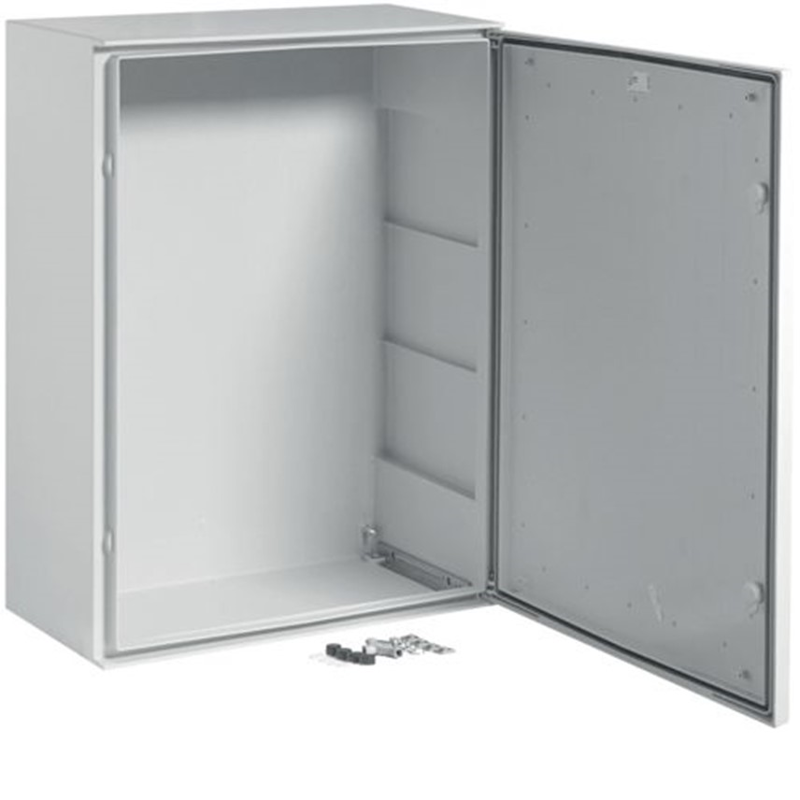

The Hager Polyester Enclosure FL229B is part of the Orion.Plus series, designed to provide robust protection for electrical and electro-mechanical applications.
This enclosure is suitable for both indoor and outdoor environments, offering high resistance to impact and environmental factors.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Glass-reinforced polyester.
Colour: Light grey (RAL 7035).
Surface Treatment: Untreated.
Construction:
Fully welded construction for enhanced strength and durability.
Plain door with a lock using a male triangular wrench.
Interlockable door with two key locks.
Suitable for wall mounting.
Protection:
Ingress Protection: IP66, ensuring excellent protection against dust and water.
Impact Resistance: IK10.
Insulation Class: II.
Dimensions:
Height: 800 mm.
Width: 600 mm.
Depth: 300 mm.
Internal Depth: 300 mm.
Thickness of Sidewall Material: 2 mm.
Technical Data:
Rated Current: 630 A.
Number of Modules: 140.
Number of Rows: 4.
Number of Rails: 5.
Number of Openings for Flange Plates: 0.
Standards: IEC 62208.
Temperature Range: Suitable for a wide range of temperatures, ensuring reliability in various environments.
Applications: Suitable for outdoor use and environments such as the food industry or medical environments where aggressive detergents are used for cleaning.
