800x600x300 POLY. ENC T/PARENT
SKU: FL229BT
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

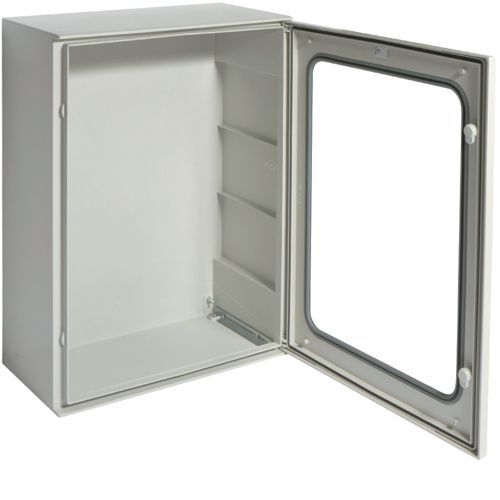

As a member of the Orion.Plus series, the Hager Polyester Enclosure FL229BT is made to offer strong protection for electro-mechanical and electrical applications.
With its excellent resistance to impact and environmental elements, this enclosure can be used both indoors and outdoors.
Without having to open the enclosure, inspection is made simple by the transparent door.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material:
Glass-reinforced polyester.
Colour: Light grey (RAL 7035).
Surface Treatment: Untreated.
Construction:
Fully welded construction for enhanced strength and durability.
Transparent door with a lock using a male triangular wrench.
Interlockable door with two key locks.
Suitable for wall mounting.
Protection:
Ingress Protection: IP66, ensuring excellent protection against dust and water.
Impact Resistance: IK10.
Insulation Class: II.
Dimensions:
Height: 800 mm.
Width: 600 mm.
Depth: 300 mm.
Internal Depth: 300 mm.
Thickness of Sidewall Material: 2 mm.
Technical Data:
Rated Current: 630 A.
Number of Modules: 140.
Number of Rows: 4.
Number of Rails: 5.
Number of Openings for Flange Plates: 0.
Standards: IEC 62208.
Temperature Range: Suitable for a wide range of temperatures, ensuring reliability in various environments.
Applications: Suitable for outdoor use and environments such as the food industry or medical environments where aggressive detergents are used for cleaning.
