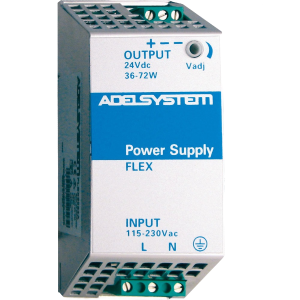

Industrial Power Supply 24Vdc 1 Phase 115 – 230 Vac 2A (115) 3A (230)
SKU: FLEX6024A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Switching power supplies for DIN rails.
Very small in size, with a 150% power boost and a wide input voltage range of 110-230-400-500 Vac.
Output protection mode can be selected.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input, single-phase: 115 – 230 Vac.
Output: 24 Vdc 50°C.
Strong overload without switch-off.
Flexible Power continuity: from 36 to 72 W.
DIN Rail Mountable.
Extremely small size.
Protection Class: IP 20.
Connection Terminal Blocks Screw Type: 2,5 mm2 (24 – 14 AWG).
Dimension (w-h-d): 50x120x50 mm.
Input Data:
Input Voltage range: 90 – 264VAC.
Frequency: 47 – 63 Hz.
Input Current: 1 – 0.7 A.
Internal Fuse: T 4 A.
External Fuse: 6 A (MCB curve B).
Output Data:
Output Voltage: 24 Vdc.
Adjustment range: 22 – 27 Vdc.
Max current Short Circuit: 7 A.
Over temperature Protection: Shut-down output and automatic restart.
Short-circuit protection: Continuous Mode.
Overload protection: Continuous Mode.
Climatic Data:
Ambient Temperature:
Operation: -25 up to +70 °C.
Storage: -40 up to +85 °C.
Humidity at 25 °C, no condensation: 95 % to 25 °C.
