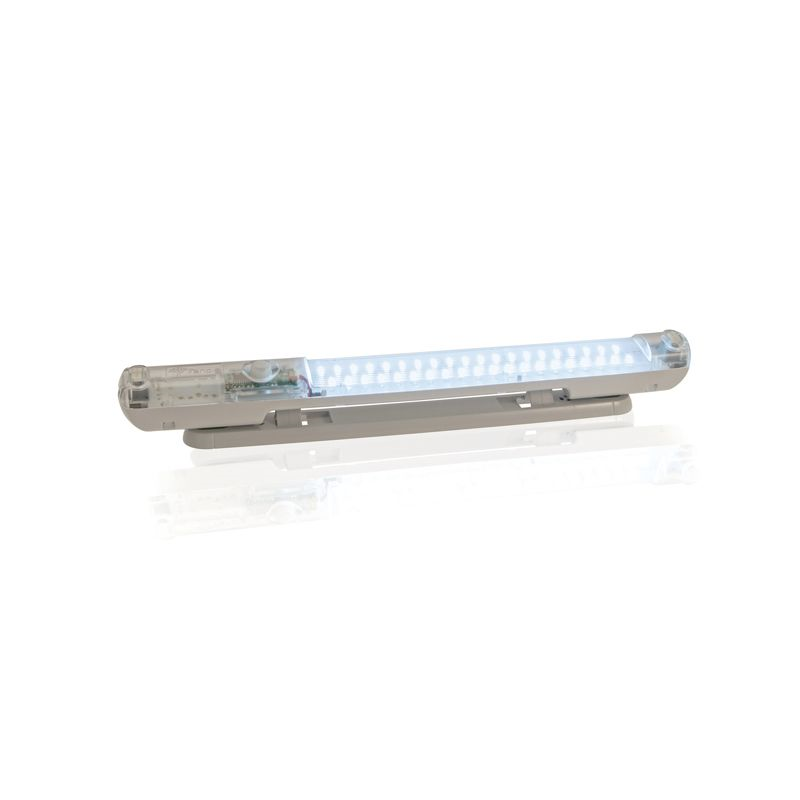

5 WATT LED PANEL LAMP + INFRARED SENSOR
SKU: FLL-300565U-IR
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Panel lights from Fandis FLL series:
It is imperative that operators have adequate lighting during switchboard maintenance and inspections so they can see the components inside the panel properly.
LED technology offers electrical cabinets an efficient lighting solution with a notably low power consumption.
The lamp's slimline design ensures safety and increases installation adaptability, making it perfect for use in confined locations.
Features:
Rotates to six distinct positions on the base (maximum of 40°)
Magnetic attaching for easy mounting on metallic surfaces (with optional magnet set)
120° radius with delayed auto off with no detected presence
Termination is accomplished by push-in cage clamp terminals on both sides with an integrated release button.
Switching is accomplished via a mounted switch or version with a PIR sensor that detects motion within.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: FLL series
POWER (W): 5
DESCRIPTION: LED panel lamp with infrared sensor
OPERATING VOLTAGE: 110/230 VAC
OPERATING TEMPERATURE: -30 to 60°C
LIFETIME: 160.000h at 25°C
LED: 290 Lm, 120°, daylight, colour temperature 6500K
INFRARED SENSOR: Yes
DIMENSIONS (MM): (H) 32 x (W) 356 x (D) 46
