Floor standing steel enclosure, Quadro5, 2010x400x260mm
SKU: FM109
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

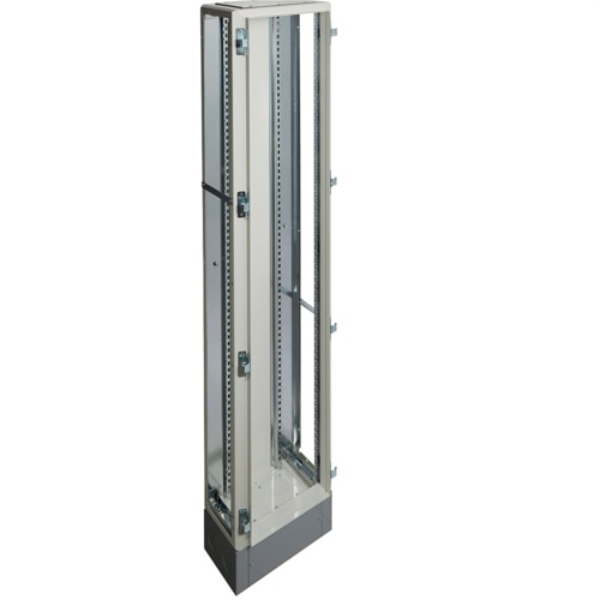

From the Quadro5 series, Hager FM109 is a floor-standing steel enclosure built for demanding energy distribution applications.
This enclosure, measuring 2010 mm in height, 400 mm in width, and 260 mm in depth, is designed to safely hold a range of electrical components.
It has a single door and a closed, basic cover, giving it a tidy and polished appearance.
The enclosure has a strong and attractive appearance thanks to its pure white (RAL 9010) powder coating.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions:
Height: 2010 mm.
Width: 400 mm.
Depth: 260 mm.
Sidewall thickness: 2 mm.
Cover thickness: 2 mm.
Material: Steel, powder coated.
Colour: Pure white (RAL 9010).
Configuration:
Number of modules: 120.
Number of rows: 13.
Number of sections in width: 1.
Number of openings for flange plates: 2.
Electrical Specifications:
Rated current: 630 A.
Suitable for lightning protection: No.
Installation:
Fixing mode: Pedestal (in-ground mounting).
Suitable for outdoor use: No.
Extension possible: Yes.
Safety:
IK protection code against mechanical impacts: IK10.
Protection index: IP55.
