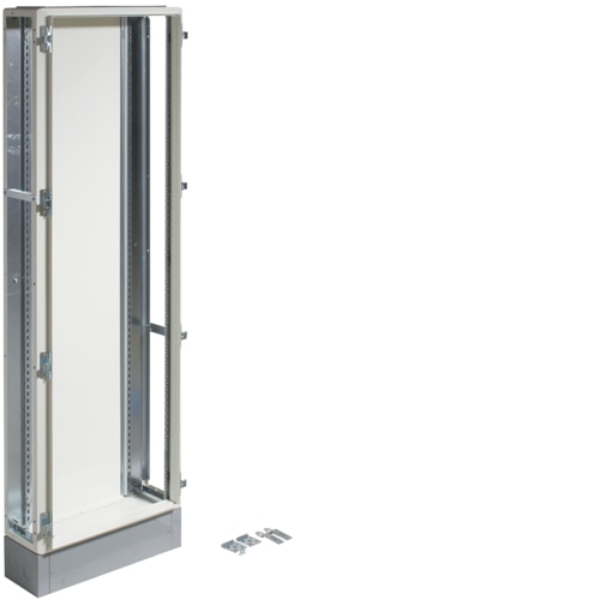

Floor standing steel enclosure, Quadro5, 2010x700x260 mm
SKU: FM209
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Strong floor-standing steel enclosure for energy distribution applications is the Hager Quadro5 FM209.
Because it is made of premium steel and has a powder-coated finish, this enclosure has exceptional resistance to environmental elements and corrosion.
The FM209's roomy proportions make it perfect for safely storing a variety of electrical components, offering dependable protection and long-term functionality.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Item Number: FM209.
Material: Steel, powder coated.
Colour: Pure white (RAL 9010).
Dimensions:
Height: 2010 mm (79.134 inches).
Width: 700 mm (27.559 inches).
Depth: 260 mm (10.236 inches).
Sidewall Thickness: 2 mm.
Cover Thickness: 2 mm.
Configuration:
Number of Modules: 288.
Number of Rows: 13.
Number of Sections in Width: 2.
Number of Openings for Flange Plates: 2.
Electrical Specifications: Rated Current: 630 A.
Installation:
Fixing Mode: Floor standing.
Suitable for Outdoor Use: No.
Extension Possible: Yes.
Safety:
Protection Class: IP55.
IK Protection Code Against Mechanical Impacts: IK10.
