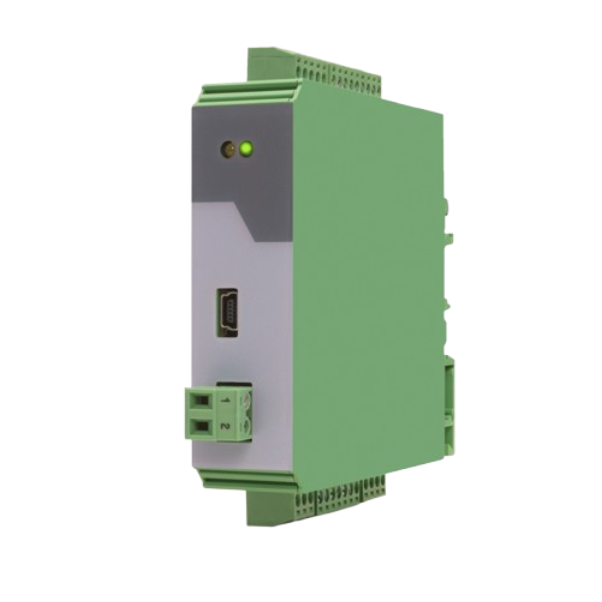

Frequency Multiplier and Frequency Divider FM210
SKU: FM210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For incremental encoder signals, the Motrona FM210 Frequency Multiplier/Frequency Divider is made to deliver accurate and dependable frequency multiplication and division.
By enabling adjustable transmission ratios between the primary and secondary sides, it operates similarly to a gearbox.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Pulse Input: Format A, B, Z (HTL single-ended, TTL single-ended) or A, /A, B, /B, Z, /Z (RS422, HTL differential).
Control Inputs: 4 control inputs for HTL, PNP signals (10 ... 30 VDC).
Input and Output Frequency: Up to 1 MHz.
Output Signals: 3 incremental outputs with format A, /A, B, /B, Z, /Z, Push-Pull, [8 ... 29 VDC].
Power Supply: 9 ... 30 VDC.
Additional Functions: Jog, trim, offset, and reference.
Housing: Snap-on housing for top hat rail (EN 60715).
