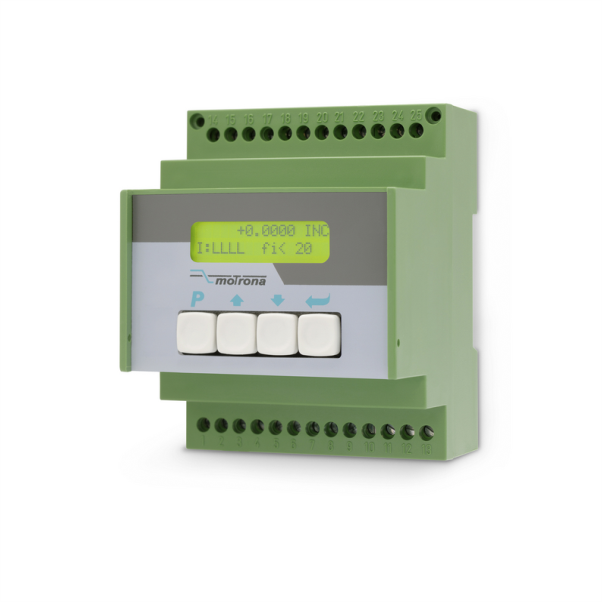

Programmable Pulse and Frequency Multiplier FM260
SKU: FM260
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Incoming signals from incremental encoders and measuring devices can be multiplied by the Motrona FM260 Programmable Pulse and Frequency Multiplier using both proportional and reciprocal factors.
By taking the rotational orientation into account, this guarantees precise pulse multiplication and avoids cumulative pulse mistakes.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Pulse Input: Format A, B, 90° (HTL) or A, /A, B, /B, Z, /Z (RS422).
Control Inputs: 4 control inputs for PNP signals (10 ... 30 VDC).
Input and Output Frequency: Up to 1 MHz.
Pulse Output: Format A, /A, B, /B, Z, /Z with push-pull characteristic, [5 ... 30 VDC].
Power Supply: 11 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
LCD Display: Backlit display for easy setup.
Setup: Via keys and RS232.
