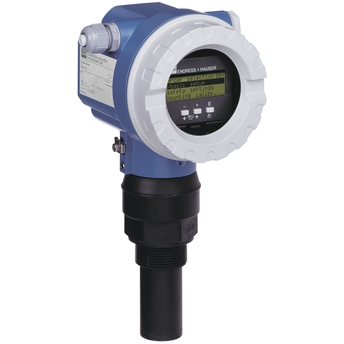

Ultrasonic measurement Time-of-Flight Prosonic FMU40
SKU: FMU40-ARBZAZ
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Cost-effective instrument for advanced level measuring in liquids and bulk materials up to 5 meters.
Field of application:
The Prosonic FMU40 sensor is appropriate for noncontact level measurement in pastes, fluids, coarse bulk materials, and open channel or weir flow measurement.
The two- or four-wire compact transmitter can be employed in applications involving storage tanks, agitators, stockpiles, and conveyor belts.
The envelope curve can be displayed on-site for easy diagnosis.
The linearization function (up to 32 points) converts measured values to length, volume, or flow rate.
Buy currently uses Select Automation shop pricing and checkout.
Benefits:
Dependable measurement without contact.
Easy and quick commissioning with menu-guided on-site operation, featuring a four-line plain text display with seven languages to choose from.
Simple diagnosis using envelope curves on the on-site monitor.
The sensor is hermetically sealed and potted for protection.
PVDF-based chemically resistant sensor.
Calibration happens without filling or discharging.
Integrated temperature sensor to automatically correct temperature-dependent sound velocity.
Features and specifications:
Continuous / Liquids:
Measuring principle: Ultrasonic.
Characteristic / Application: Compact ultrasonic transmitter.
Supply / Communication: 2-wire HART.
Accuracy: +/- 2 mm or +/- 0.2 % of set measuring Range.
Ambient temperature: -40 °C ... 80 °C (-40 °F ... 176 °F).
Process temperature: -40 °C ... 80 °C (-40 °F ... 176 °F).
Process pressure / max. overpressure limit: 0.7 bar ... 3 bar abs (10 psi ... 44 psi).
Main wetted parts: PVDF.
Process connection: G / NPT 1 1/2”.
Blocking distance: 0.25 m (0.8 ft).
Max. measurement distance: Liquids: 5 m (16 ft), Solids: 2 m (6.6 ft).
Communication: 4...20 mA HART.
Certificates / Approvals: ATEX, FM, CSA, TIIS, INMETRO, NEPSI.
Application limits:
For higher resistance: FMU42/FDU9x.
Foam / high turbulence possible: FMU41/FDU91.
Fast filling and discharge rate: FMU90 + FDU9x.
Level limit detection: FMU90 + FDU9x.
Continuous / Solids:
Measuring principle: Ultrasonic.
Characteristic / Application: Compact ultrasonic transmitter.
Supply / Communication: 2-wire HART.
Accuracy: +/- 2 mm or +/- 0.2 % of set measuring range 1).
Ambient temperature: -40 °C ... 80 °C (-40 °F ... 176 °F).
Process temperature: -40 °C ... 80 °C (-40 °F ... 176 °F).
Process pressure / max. overpressure limit: 0.7 bar ... 3 bar abs (10 psi ... 44 psi).
Main wetted parts: PVDF.
Process connection: G / NPT 1 1/2".
Blocking distance: 0.25 m (0.8 ft).
Max. measurement distance: Liquids: 5 m (16 ft), Solids: 2 m (6.6 ft).
Communication: 4...20 mA HART.
Certificates / Approvals: ATEX, FM, CSA, TIIS, INMETRO, NEPSI.
Application limits: Take notice of range diagram.
Point Level / Liquids:
Measuring principle: Ultrasonic Limit.
Characteristic / Application: Compact ultrasonic transmitter.
Supply / Communication: 2-wire HART.
Ambient temperature: -40 °C... +80 °C (-40 °F... +176 °F).
Process temperature: -40 °C... +80 °C (-40 °F... +176 °F).
Process pressure / max. overpressure Limit: 0.7 bar...3 bar abs (10 psi...44 psi).
Main wetted parts: PVDF.
Process connection: G / NPT 1 1/2".
Blocking distance: 0.25 m (0.8 ft).
Communication: 4...20 mA HART.
Certificates / Approvals: ATEX, FM, CSA, INMETRO, NEPSI.
Application limits: Take notice of range diagram.
Point Level / Solids:
Measuring principle: Ultrasonic Limit.
Characteristic / Application: Compact ultrasonic transmitter.
Supply / Communication: 2-wire HART.
Ambient temperature: -40 °C... +80 °C (-40 °F... +176 °F).
Process temperature: -40 °C... +80 °C (-40 °F... +176 °F).
Process pressure / max. overpressure Limit: 0.7 bar...3 bar abs (10 psi...44 psi).
Main wetted parts: PVDF.
Process connection: G / NPT 1 1/2".
Blocking distance: 0.25 m (0.8 ft).
Communication: 4...20 mA HART.
Certificates / Approvals: ATEX, FM, CSA, INMETRO, NEPSI.
Application limits: Take notice of range diagram.
Liquids:
Measuring principle: Ultrasonic.
Product headline: Compact ultrasonic measuring Instrument Cost effective solution for open channel.
Max. measurement error: Low accuracy.
Measuring range: 0,25...5m [0.8...16ft].
Max. process pressure: atm.
Medium temperature range: -40°C ... 80°C (-40°F...176°F).
Degree of protection: IP68.
Outputs: 4...20mA (Hart), PA, FF.
Inputs: 2-wire 16-36V DC, 4-wire 16-36V DC, 90-253V AC 50/60Hz.
Digital communication: PROFIBUS PA, FOUNDATION Fieldbus.
Hazardous area approvals: ATEX, FM, CSA.
