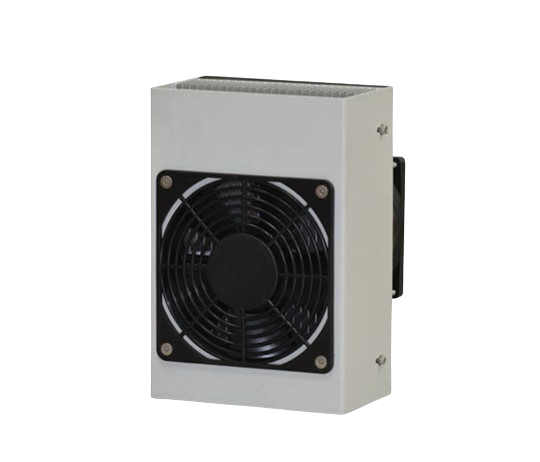

Standard Switch Cabinet Cooler Size 1, 70 W
SKU: FN-104-C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Switch cabinets and enclosure coolers without refrigerant:
Small switch cabinets and enclosures are the intended application for our Basic series of refrigerant-free switch cabinet coolers.
They still have all the benefits of the larger refrigerant-free switch cabinet coolers, such as the ability to be installed in any orientation, quickly initiated by a straightforward mains connection, and compatible with, say, a more potent switch cabinet cooler of the same size.
The high efficiency at a low cost of the Basic series refrigerant-free switch cabinet coolers makes them very effective.
Each one of our Basic series refrigerant-free switch cabinet coolers has an IP55-rated exterior.
Buy currently uses Select Automation shop pricing and checkout.
Switch Cabinet Cooler:
Power supply: 24 V - DC.
Rated input: 70 W.
Cooling power (L35 / L35): 58 W.
Max. input current: 5 A.
Rated current: 3 A.
Weight: ca. 3 kg.
Protection Classification outer side (warm): IP67.
Protection Classification internal side (cold): IP20.
Operational temperature range: -40 °C to 70 °C.
Storage temperature range: -40 °C to 70 °C.
