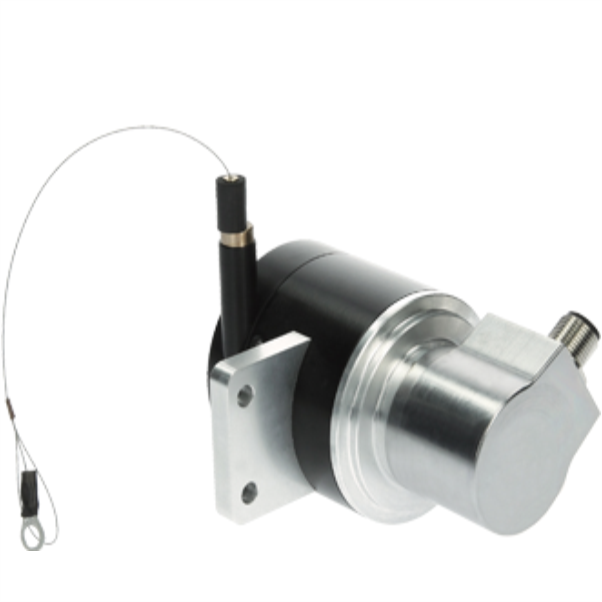

Fraba Cable-Extension Position Transducer, 4-20mA
SKU: FRA-LU0-AC005-0413-2P40-PRM
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A dependable and accurate tool for precise linear position measurement in industrial applications is the Posital Fraba Cable-Extension Position Transducer, model FRA-LU0-AC005-0413-2P40-PRM.
This transducer is appropriate for a variety of automation and control systems since it uses a strong draw-wire mechanism to transform linear motion into an electrical signal.
With an aluminium housing and a coated polyamide stainless steel wire, the device's robust design ensures long-term performance even in challenging conditions.
This transducer's excellent resolution and analog current output make it perfect for applications that need accurate and consistent position feedback.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Interface: Analog Current 4-20mA.
Supply Voltage: 8 – 32 VDC.
Current Consumption: Typical 20 mA @ 24 V (no load).
Power Consumption: ≤ 2.5 W.
Start-Up Time: < 500 ms.
Protection Class: IP64 / IP65 (encoder).
Operating Temperature: -20 °C to +80 °C.
Storage Temperature: -20 °C to +80 °C.
Humidity: 98% RH, no condensation.
Max. Measurement Length: 1.90 m (6.23 ft).
Length per Revolution: 150 mm.
Wire Material: Coated Polyamide Stainless Steel.
Wire Diameter: 0.45 mm.
Max. Speed of Wire Displacement: 2.0 m/s.
Max. Wire Acceleration: 12.0 g.
Max. Extension Force: 5.0 N.
Min. Retraction Force: 3.5 N.
Actuation Lifetime: 1.0 million cycles (estimated based on ideal conditions).
Accuracy: ±0.02% FSO.
Repeatability: ±0.006% FSO.
Resolution: 13-bit single turn, 4-bit multiturn.
Housing Material: Aluminium.
Connection Type: Radial Connector M12, Male, 5 pin, a coded.
Weight: 455 g.
