      Fraba Draw Wire SG61-6000, M6 Thread

      SKU: FRA-SG61-6000-10051774

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: For industrial applications, the Posital Fraba Draw Wire SG61-6000, model FRA-SG61-6000-10051774, is a dependable and accurate tool for measuring linear position. This draw-wire mechanism is appropriate for a variety of automation and control systems since it transforms linear motion into an electrical signal. Long-term performance even in challenging conditions is ensured by the device's sturdy design, which includes an aluminium/plastic housing and a stainless-steel measuring wire. This draw-wire transducer is perfect for applications needing accurate and consistent position feedback because of its excellent resolution and repeatability.

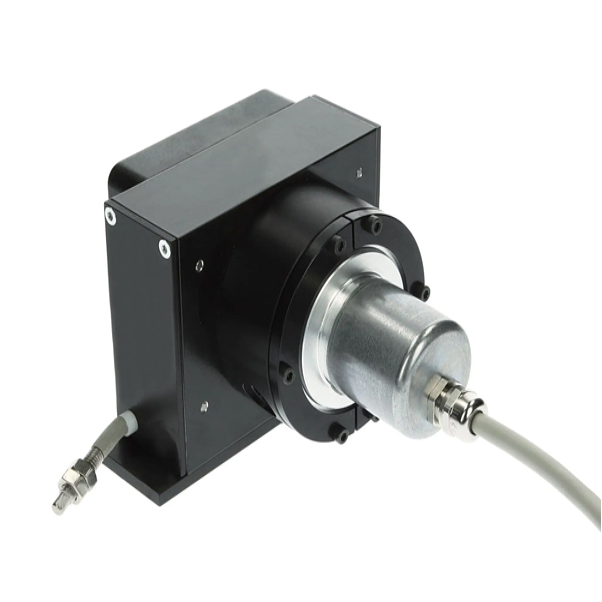

      FRA-SG61-6000-10051774
      Alternative image 1
      Specifications: Flange Type: Synchro - Solid Shaft. Flange Diameter: 58 mm. Accuracy: ±0.006 % FSO. Repeatability: ±0.003 % FSO. Measurement Length: 6.00 m (19.69 ft). Draw Wire Enclosure: Machined Metal, Rectangular Housing. Draw Wire Housing Material: Aluminium / Plastic. Wire Material: Stainless Steel. Wire Diameter: 0.60 mm. Length per Revolution: 200 mm. Max. Speed of Wire Displacement: 3 m/s. Max. Extension Force: 8.0 N. Max. Angular Acceleration: 2.4 g. Min. Retraction Force: 3.0 N. Wire Mounting: M6 Thread. Shaft Diameter: 6 mm. Operating Temperature: -20 °C to 80 °C (-4 °F to 176 °F). Weight: 700 g.
