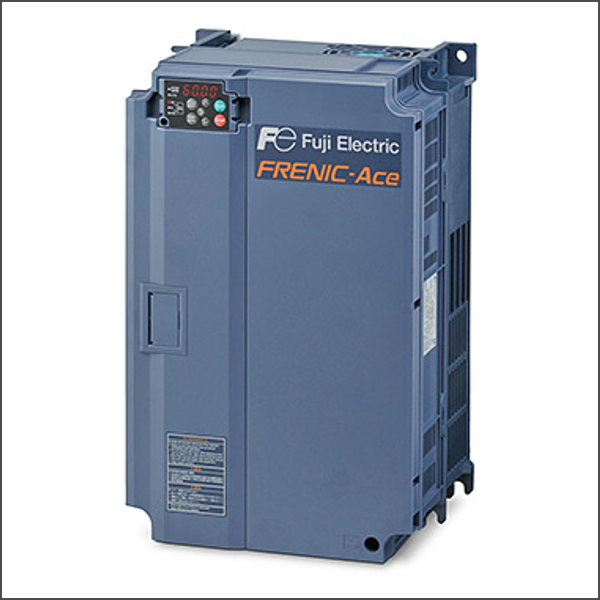

Fuji FRENIC Ace Driver 2.1.5A , 11kw FRN0022E2E-4ND
SKU: FRN0006AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The inverter that produces excellent cons-performance maintaining high performance through optimal design, in this way, it can be applied to various machines and devices.
The standard inverter for the next generation, the FRENIC-Ace can be used in almost any type of application from fans and pumps to specialized machinery.
Features
The inverter's superior design facilitates high performance and exceptional efficiency, making it compatible with a wide range of machinery and electronic devices.
The FRENIC-Ace, a cutting-edge inverter model, is versatile and well-suited for a multitude of applications, including specialized machinery, as well as fans and pumps.
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Pumps/ Fans/ Wire drawing
Capacity (kW): 11
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 16
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 21.5
Overload capacity, % per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 33
Rated current with DCR (A): 21.1
Required power supply (kVA): 15
Braking
Braking torque (%): 12%
DC Braking: Starting frequency: 0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm): 80
