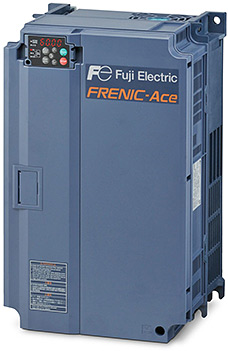

Fuji FRENIC Ace Driver 28.5A , 15kw FRN0029E2-4ND
SKU: FRN0007AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The inverter's optimal design allows for consistent high performance, coupled with exceptional reliability, making it a versatile solution for a variety of machinery and devices.
The FRENIC-Ace, serving as the industry standard for next-generation inverters, is well-suited for a wide range of applications, including specialized machinery, fans, and pumps.
Features
Enhanced flexibility and adaptability.
Quadrupled rating for CAN integrated open communication.
High capacity of up to 220 kW in HHD.
Wide range of operational capabilities.
Standard practical security with STO operation.
10-year design life.
Multi-purpose keypad with USB port.
Basic keypad with USB connector.
Various communication cards available, including DIVICENet, CC-Link, RS-485, PROFIBUS-DP, and CANopen.
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Pumps/ Fans/ Wire drawing
Capacity (kW): 15
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA):22
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 28.5
Overload capacity, % per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 45.8
Rated current with DCR (A): 28.8
Required power supply (kVA): 20
Braking
Braking torque (%): 12%
DC Braking: Starting frequency: 0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm):60
