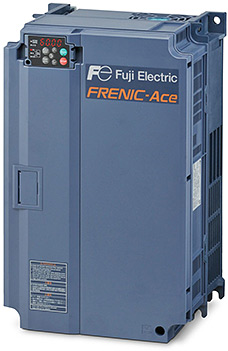

Fuji FRENIC Ace Driver 37A , 18.5kw FRN0037E2E-4ND
SKU: FRN0008AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The inverter's optimal design enables it to maintain superior performance while delivering exceptional versatility, making it well-suited for a wide range of equipment and devices.
The FRENIC-Ace, regarded as the industry standard for inverters in the upcoming generation, is applicable for numerous types of applications, including specialized machinery, fans, and pumps.
Features
Enhanced flexibility and adaptability capabilities
Four times the Integrated Open Communication rating on standard models
High Horsepower Drives with up to 220 kW capacity
Wide range of operations included as a standard feature.
Standard Security Torx Operation
Expected design life of ten years.
Multipurpose keypad with USB port included.
Standard keypad with USB connector provided.
Optional communication cards available for DeviceNet, CC-Link, RS-485, PROFIBUS-DP, and CANopen protocols
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Pumps/ Fans/ Wire drawing
Capacity (kW): 18.5
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 8
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 37
Overload capacity, % per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 52.3
Rated current with DCR (A): 35.5
Required power supply (kVA): 25
Braking
Braking torque (%): 12%
DC Braking: Starting frequency : 0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm): 840
