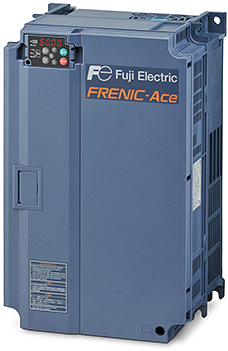

Fuji FRENIC Ace Driver 44A , 22kw FRN0044E2E-4ND
SKU: FRN0009AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The FRENIC-Ace inverter is designed for optimal performance with a wide range of equipment and devices.
With its high efficiency and versatility, it is the ideal choice for various applications, including specialized machinery, fans, and pumps.
Features
Enhanced Flexibility, Improved Adaptability.
Fourfold increase in CAN Quadruple Rating, Standard Integrated Open Communication.
Up to 220 kW Capacity in HHD.
Wide Range of Operations as Standard Feature.
Standard STO Operation for Practical Security.
Design Life of Ten Years.
Multipurpose Keypad with USB Port.
Basic Keypad with USB Connector.
Optional Devicenet, CC-Link, RS-485, PROFIBUS-DP, and CANopen Communication Cards.
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Pumps/ Fans/ Wire drawing
Capacity (kW): 22
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 34
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 44
Overload capacity, % per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 60.6
Rated current with DCR (A): 42.2
Required power supply (kVA): 29
Braking
Braking torque (%):
DC Braking: Starting frequency: 0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm): 34.4
