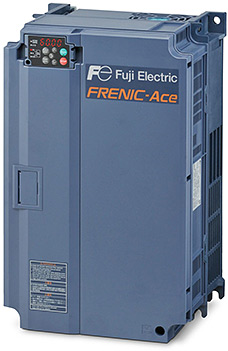

      Fuji FRENIC Ace Driver 59A , 30kw FRN0059E2E-4ND

      SKU: FRN0010AA1

      Out of stock

      Availability: Out of Stock

      Short Description
      THE FRENIC-Ace The inverter's innovative design enables it to deliver exceptional performance while also offering superior energy efficiency, making it an ideal choice for a wide range of industrial equipment and electronic devices. The FRENIC-Ace, recognized as the premier inverter for the future, is versatile enough to be utilized in various applications, from specialized machinery to fan and pump systems. Features Flexible logic, increased flexibility Capable of achieving a quadruple rating with integrated open communication as the norm Capable of supporting up to 220 kW of capacity in HHD Wide range of operations as a standard feature Standard practical security STO operation Designed with a lifespan of ten years Multi-functional keypad with a built-in USB port Standard keypad with a USB connector Features the OPC-DEV DeviceNet communication card Includes the OPC-CCL or CC-Link communication card Equipped with the OPC-E2-RS or RS-485 communication card Includes the OPC-PDP3 PROFIBUS-DP communication card and the OPC-COP CANopen communication card.
      FRN0010AA1
      Alternative image 1
      LEAD TIME 2-3 WEEKS IF NOT IN STOCK Technical Specification Application: Pumps/ Fans/ Wire drawing Capacity (kW): 30 Enclosure: IP20 Cooling method: Fan cooling Output Ratings Rated capacity (kVA): 48 Rated Voltage (V): Three-phase 380-480V (With AVR) Current (A): 59 Overload capacity, % per 1 min: 120% of normal current for 1 min Main power supply: Three-phase 380 to 480V (with AVR) Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%) Input Ratings Rated current without DCR (A): 77.9 Rated current with DCR (A): 57.0 Required power supply (kVA): 39 Braking Braking torque (%):  12% DC Braking: Starting frequency: 0.0 to 600Hz. Braking time: 0.0 to 30.0s. Braking chopper: Built-in Minimum connectable resistance (ohm): 16
