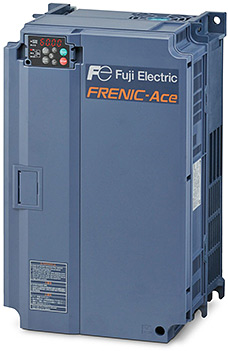

Fuji FRENIC Ace Driver 72A , 37kw FRN0072E2-4ND
SKU: FRN0011AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The FRENIC-Ace inverter features a versatile design that allows it to be used with a wide range of machines and devices, ensuring high performance and efficiency.
It is considered the ideal choice for various applications, from simple fans and pumps to specialized machinery.
Features
Customizable logic, Superior flexibility
Quadruple rating
CAN Open communications built-in as standard
Capacity range up to 220 kw in HHD
Wide variety of functions as a standard feature
Functional safety: STO function as standard
10 years lifetime design
Multi-function keypad with USB port
Simple keypad with USB port
DiviceNet communication card (OPC-DEV)
CC-Link communication card (OPC-CCL)
RS-485 (OPC-E2-RS)
PROFIBUS-DP communication card (OPC-PDP3)
CANopen Communication card (OPC-COP)
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Pumps/ Fans/ Wire drawing
Capacity (kW): 37
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 55
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 72
Overload capacity, % per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 94.3
Rated current with DCR (A): 68.5
Required power supply (kVA): 47
Braking
Braking torque(%): 12%
DC Braking: Starting frequency: 0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm): 16
