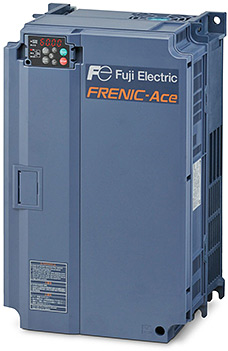

      Fuji FRENIC Ace Driver 240A ,132kw FRN0240E2E-4ND

      SKU: FRN0017AA1

      Out of stock

      Availability: Out of Stock

      Short Description
      THE FRENIC-Ace The innovative design of the inverter ensures high performance and exceptional efficiency, making it a versatile option for various machines and devices. The FRENIC-Ace, a top-of-the-line inverter designed for the future, is ideal for a wide range of applications, including specialized machinery, fans, and pumps. Features Customizable logic, Superior flexibility Quadruple rating CAN Open communications built-in as standard Capacity range up to 220 kw in HHD Wide variety of functions as a standard feature Functional safety: STO function as standard 10 years lifetime design Multi-function keypad with USB port Simple keypad with USB port DiviceNet communication card (OPC-DEV) CC-Link communication card (OPC-CCL) RS-485 (OPC-E2-RS) PROFIBUS-DP communication card (OPC-PDP3) CANopen Communication card (OPC-COP)
      FRN0017AA1
      Alternative image 1
      LEAD TIME 2-3 WEEKS IF NOT IN STOCK Technical Specification Application: Pumps/ Fans/ Wire drawing Capacity (kW): 132 Enclosure: IP20 Cooling method: Fan cooling Output Ratings Rated capacity (kVA): 183 Rated Voltage (V): Three-phase 380-480V (With AVR) Current (A): 240 Overload capacity, % per 1 min: 120% of normal current for 1 min Main power supply: Three-phase 380 to 480V, 50/60Hz Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%) Input Ratings Rated current without DCR (A): - Rated current with DCR (A): 238 Required power supply (kVA): 65 Braking Braking torque (%): 5-9% DC Braking: Starting frequency: 0.0 to 60.0Hz. Braking time: 0.0 to 30.0s. Braking chopper: Option
