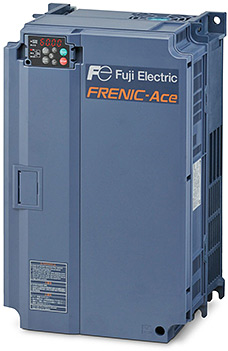

      Fuji FRENIC Ace Driver 361A , 200kw FRN0361E2E-4ND

      SKU: FRN0019AA1

      Out of stock

      Availability: Out of Stock

      Short Description
      THE FRENIC-Ace The FRENIC-Ace inverter boasts high performance capabilities due to its optimal design, allowing it to be effectively utilized across a wide range of machines and devices. From fans and pumps to specialized machinery, the FRENIC-Ace is recognized as the industry standard for next-generation inverters. Features Customizable logic, Superior flexibility Quadruple rating CAN Open communications built-in as standard Capacity range up to 220 kw in HHD Wide variety of functions as a standard feature Functional safety: STO function as standard 10 years lifetime design Multi-function keypad with USB port Simple keypad with USB port DiviceNet communication card (OPC-DEV) CC-Link communication card (OPC-CCL) RS-485 (OPC-E2-RS) PROFIBUS-DP communication card (OPC-PDP3) CANopen Communication card (OPC-COP)
      FRN0019AA1
      Alternative image 1
      LEAD TIME 2-3 WEEKS IF NOT IN STOCK Technical Specification Application: Pumps/ Fans/ Wire drawing Capacity (kW): 200 Enclosure: IP20 Cooling method: Fan cooling Output Ratings Rated capacity (kVA): 75 Rated Voltage (V): Three-phase 380-480V (With AVR) Current (A):361 Overload capacity, % per 1 min: 120% of normal current for 1 min Main power supply: Three-phase 380 to 480V, 50/60Hz, Frequency +5 to -5%) Input Ratings Rated current without DCR (A): - Rated current with DCR (A): 357 Required power supply (kVA): 248 Braking Braking torque (%): 5-9% DC Braking: Starting frequency:0.0 to 60.0Hz. Braking time: 0.0 to 30.0s. Braking chopper: Option
