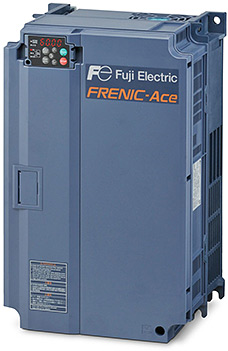

Fuji FRENIC Ace Driver 415A , 220kw FRN0415E2E-4ND
SKU: FRN0020AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The FRENIC-Ace inverter is expertly designed to consistently deliver high performance with exceptional efficiency, making it an ideal choice for a wide range of machinery and devices.
It is versatile enough to be utilized in various applications, including specialized equipment, fans, and pumps, establishing itself as the standard inverter for cutting-edge technologies.
Features
Customizable logic, Superior flexibility
Quadruple rating
CAN Open communications built-in as standard
Capacity range up to 220 kw in HHD
Wide variety of functions as a standard feature
Functional safety: STO function as standard
10 years lifetime design
Multi-function keypad with USB port
Simple keypad with USB port
DiviceNet communication card (OPC-DEV)
CC-Link communication card (OPC-CCL)
RS-485 (OPC-E2-RS)
PROFIBUS-DP communication card (OPC-PDP3)
CANopen Communication card (OPC-COP)
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Pumps/ Fans/ Wire drawing
Capacity (kW): 220
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 316
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 415
Overload capacity, % per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V, 50/60Hz
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): -
Rated current with DCR (A): 390
Required power supply (kVA): 271
Braking
Braking torque (%): 5-9%
DC Braking: Starting frequency:0.0 to 60.0Hz.Braking time: 0.0 to 30.0s.
Braking chopper: Option
