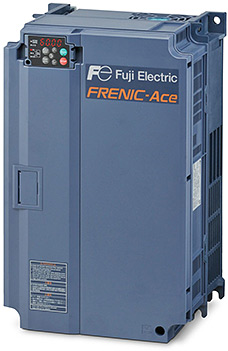

Fuji FRENIC Ace Driver 1.8A , .75kw FRN0002E2E-4HD
SKU: FRN0023AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The ideal design of the inverter enables it to achieve high performance levels while delivering exceptional efficiency, making it well-suited for a wide range of equipment and devices.
The FRENIC-Ace, the industry standard inverter for future applications, is versatile enough to be utilized in various settings, including specialized machinery as well as fans and pumps.
Features
Customizable logic, Superior flexibility
Quadruple rating
CAN Open communications built-in as standard
Capacity range up to 220 kw in HHD
Wide variety of functions as a standard feature
Functional safety: STO function as standard
10 years lifetime design
Multi-function keypad with USB port
Simple keypad with USB port
DiviceNet communication card (OPC-DEV)
CC-Link communication card (OPC-CCL)
RS-485 (OPC-E2-RS)
PROFIBUS-DP communication card (OPC-PDP3)
CANopen Communication card (OPC-COP)
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Vertical conveyance
Capacity (kW): .75
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 1.4
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 1.8
Overload capacity, 150% per 1 min: 120% of normal current for 1 min
Main power supply: hree-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 2.7
Rated current with DCR (A): 1.5
Required power supply (kVA): 1.1
Braking
Braking torque (%): 53%
DC Braking: Starting frequency: 0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm): 200
