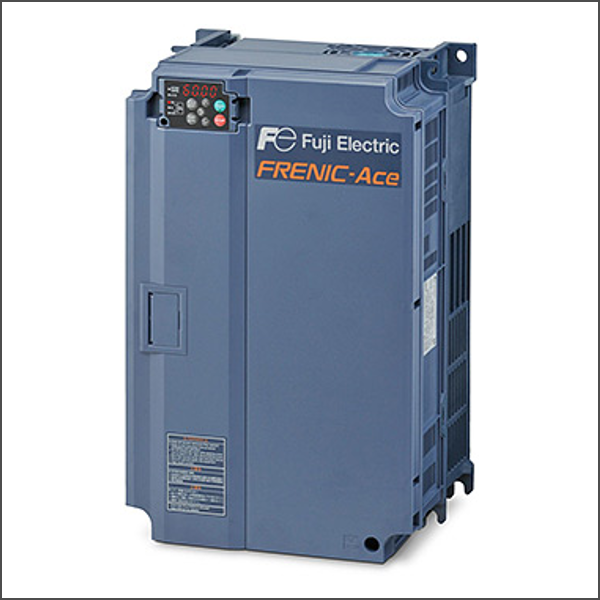

      Fuji FRENIC Ace Driver 6.3A , 3kw FRN0007E2E-4HD

      SKU: FRN0026AA1

      Out of stock

      Availability: Out of Stock

      Short Description
      THE FRENIC-Ace The FRENIC-Ace inverter is renowned for its exceptional performance and versatility, thanks to its optimal design that enables high efficiency across a wide range of machines and devices. It is considered the industry standard for the next generation of inverters, suitable for a variety of applications including fans, pumps, and specialized machinery. Features Customizable logic, Superior flexibility Quadruple rating CAN Open communications built-in as standard Capacity range up to 220 kw in HHD Wide variety of functions as a standard feature Functional safety: STO function as standard 10 years lifetime design Multi-function keypad with USB port Simple keypad with USB port DiviceNet communication card (OPC-DEV) CC-Link communication card (OPC-CCL) RS-485 (OPC-E2-RS) PROFIBUS-DP communication card (OPC-PDP3) CANopen Communication card (OPC-COP)
      FRN0026AA1
      Alternative image 1
      LEAD TIME 2-3 WEEKS IF NOT IN STOCK Technical Specification Application: Vertical conveyance Capacity (kW): 3.0 Enclosure: IP20 Cooling method: Fan cooling Output Ratings Rated capacity (kVA): 4.8 Rated Voltage (V): Three-phase 380-480V (With AVR) Current (A): 6.3 Overload capacity, 150% per 1 min: 120% of normal current for 1 min Main power supply: Three-phase 380 to 480V (with AVR) Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%) Input Ratings Rated current without DCR (A): 11.3 Rated current with DCR (A): 5.8 Required power supply (kVA): 4.1 Braking Braking torque (%): 29% DC Braking: Starting frequency: 0.0 to 600Hz. Braking time: 0.0 to 30.0s. Braking chopper: Built-in Minimum connectable resistance (ohm): 160
