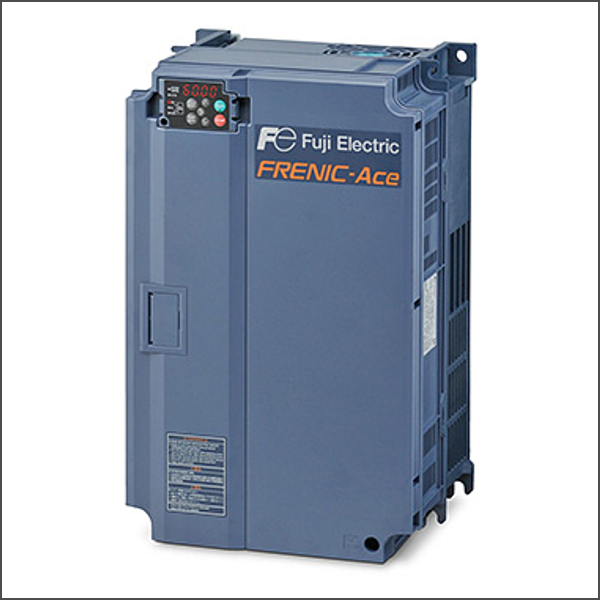

Fuji FRENIC Ace Driver 60A , 30kw FRN0072E2E-4HD
SKU: FRN0033AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
Since it maintains high performance through optimal design, the inverter that yields great cons-performance may be utilized to a variety of machines and devices.
With applications ranging from fans and pumps to specialized machinery, the FRENIC-Ace is the standard inverter of the next generation.
Features
Customizable logic, Superior flexibility
Quadruple rating
CAN Open communications built-in as standard
Capacity range up to 220 kw in HHD
Wide variety of functions as a standard feature
Functional safety: STO function as standard
10 years lifetime design
Multi-function keypad with USB port
Simple keypad with USB port
DiviceNet communication card (OPC-DEV)
CC-Link communication card (OPC-CCL)
RS-485 (OPC-E2-RS)
PROFIBUS-DP communication card (OPC-PDP3)
CANopen Communication card (OPC-COP)
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Vertical conveyance
Capacity (kW): 30
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 46
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 60.0
Overload capacity, 150% per 1 min: 120% of normal current for 1 min
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 77.9
Rated current with DCR (A): 57.0
Required power supply (kVA): 39
Braking
Braking torque (%): 12%
DC Braking: Starting frequency:0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Built-in
Minimum connectable resistance (ohm): 16
