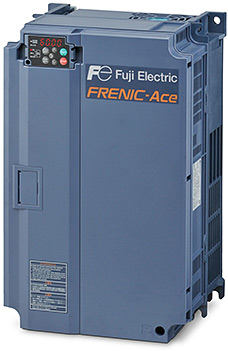

Fuji FRENIC Ace Driver 39A , 18.5kw FRN0059E2E-4HHD
SKU: FRN0076AA1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
THE FRENIC-Ace
The inverter's ideal design allows it to maintain high performance while producing outstanding cons-performance, making it suitable for use with a variety of machines and gadgets.
The FRENIC-Ace, the standard inverter for the next generation, is suitable for practically any kind of application, including specialist machinery and fans and pumps.
Features
Customizable logic, Superior flexibility
Quadruple rating
CAN Open communications built-in as standard
Capacity range up to 220 kw in HHD
Wide variety of functions as a standard feature
Functional safety: STO function as standard
10 years lifetime design
Multi-function keypad with USB port
Simple keypad with USB port
DiviceNet communication card (OPC-DEV)
CC-Link communication card (OPC-CCL)
RS-485 (OPC-E2-RS)
PROFIBUS-DP communication card (OPC-PDP3)
CANopen Communication card (OPC-COP)
Buy currently uses Select Automation shop pricing and checkout.
LEAD TIME 2-3 WEEKS IF NOT IN STOCK
Technical Specification
Application: Vertical conveyance / Widing machines / Printing Machines
Capacity (kW): 18.5
Enclosure: IP20
Cooling method: Fan cooling
Output Ratings
Rated capacity (kVA): 30
Rated Voltage (V): Three-phase 380-480V (With AVR)
Current (A): 38.0
Overload capacity, 150% of normal current for 1 min OR 200% of normal current for 0.5s
Main power supply: Three-phase 380 to 480V (with AVR)
Voltage/ Frequency variation: Voltage +10 to -15% (Voltage unbalance 2% or less, Frequency +5 to -5%)
Input Ratings
Rated current without DCR (A): 52.3
Rated current with DCR (A): 35.5
Required power supply (kVA) : 25
Braking
Braking torque (%): 20%
DC Braking: Starting frequency:0.0 to 600Hz.
Braking time: 0.0 to 30.0s.
Braking chopper: Option
