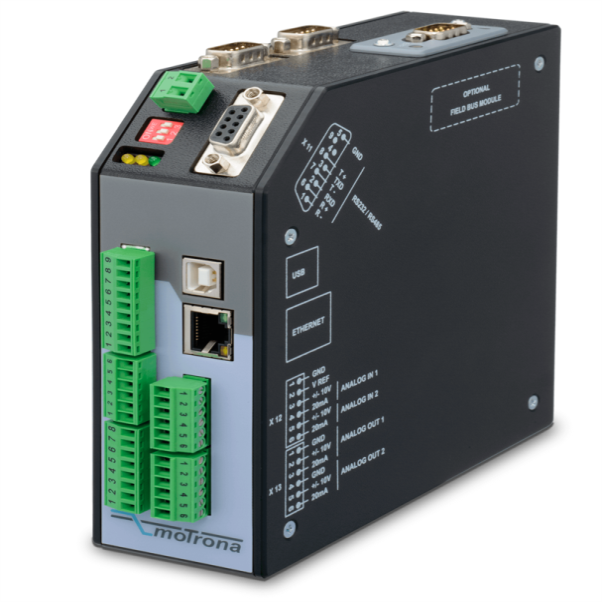

Flying Material Processing Firmware FS801
SKU: FS801
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Following in the footsteps of the successful MC700, the MC800 multi-axis motion controller is impressive due to its even more flexible bus architecture and even higher bandwidth.
The integrated Tandem Drive Controller is a unique feature of this drive control.
This makes it possible to distribute power across two separate drives to meet the secondary axis' acceleration demand.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
2 pulse inputs with format A, /A, B, /B, Z, /Z [HTL, RS422] with an input frequency up to 2 MHz.
2 control inputs with format SIN+, SIN-, COS+, COS- [1 Vss] with an input frequency up to 400 kHz.
2 SSI inputs with format DATA+, DATA-, CLOCK+, CLOCK- up to 25 Bit, with SSI switching frequency of 100 Hz ... 1 MHz.
2 scalable 14-bit analog inputs for ±10 V or 0/4 ... 20 mA.
4 control inputs for PNP / NPN signals [10 ... 30 VDC].
4 fast interrupt inputs for PNP / NPN signals [10 ... 30 VDC].
1 pulse output with format A, /A, B, /B, Z, /Z [RS422].
4 control outputs with push-pull characteristic, short-circuit-proof [5 ... 30 VDC].
2 scalable 14-bit analog outputs for ±10 V or 0/4 ... 20 mA.
Loop time approx. 250 µs.
Power supply 18 ... 35 VDC.
Snap-on housing for top hat rail (according to EN 60715).
OnBoard interfaces: Ethernet / IP, RS232 / RS485, USB 2.0, CANopen, Modbus RTU.
Optional Ethernet interfaces: EtherCAT, Ethernet / IP, Modbus TCP, Powerlink, PROFINET, SERCOS III.
Optional Fieldbus interfaces (slave): CC-Link, DeviceNet, PROFIBUS.
Operates with all 4-Q-drive systems, equipped with a standardized drive communication bus (e. g. SERCOS-II).
Alternatively, ±10 V setpoint can be used.
The controllers can be setup by an external operator terminal as well as HMIs via standardized factory communication bus e. g. PROFINET.
