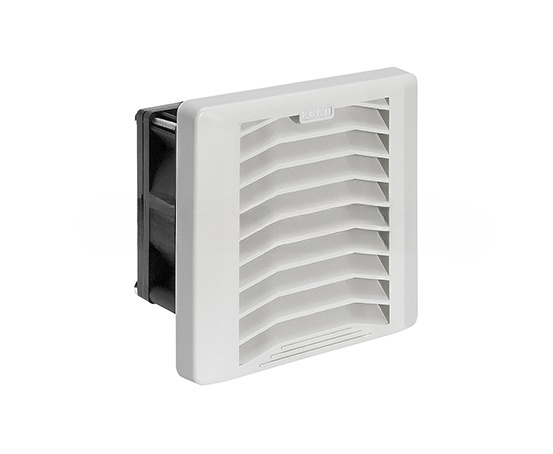

PANEL FAN/FILTER UNIT 230VAC S3
SKU: FU-9803C1 P2A23
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Complete filter/fan units in the FU98 series:
Complete filter fan assembly, with interior finger protection, detachable filter, mounting frame, and fan.
It installs easily as a ventilator for electrical cabinets and panels by mounting via a panel wall or door.
Features:
Temperature: -10°C to +85°C.
Polyurethane foam with a permanent sealing gasket.
Self-lubricating ball-bearing fans with shielding.
Material: ABS self-extinguishing - UL94V-0, RoHS.
Buy currently uses Select Automation shop pricing and checkout.
AC filter and fans:
FU98A series.
Fan type: KA1238.
SUPPLY VOLTAGE: 230 VAC.
POWER: 21.6 WATT
AIR FLOW/HOUR: 88.
Noise (BD/A): 52.
SIZE: 3.
Frame dimensions (mm²): 149.
CUTOUT DIMENSIONS (MM²): 122.
