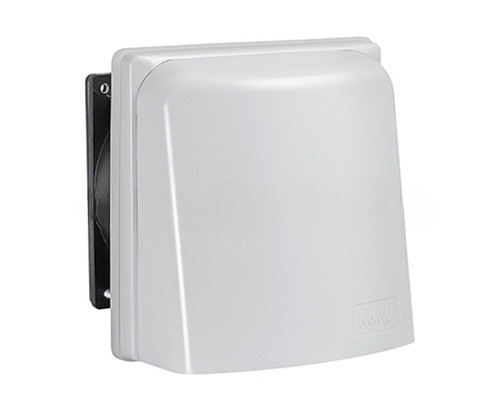

PANEL FAN/FILTER 24VDC RAIN HOOD S3
SKU: FU-9803C2 P2D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Filter/fan units with rain hood in the FU98B series:
Complete filter fan assembly, with interior finger protection, detachable filter, mounting frame, and fan.
It installs easily as a ventilator for electrical cabinets and panels by mounting via a panel wall or door.
Features:
Temperature: -10°C to +85°C.
Polyurethane foam with a permanent sealing gasket.
Self-lubricating ball-bearing fans with shielding.
Material: PC - (Polycarbonate) UV protected - self-extinguishing - UL94V-0, RoHS.
Buy currently uses Select Automation shop pricing and checkout.
DC filter and fans with rain hood:
FU98B series.
Fan type: DC1225 series.
SUPPLY VOLTAGE: 24 VDC.
POWER: 6.5 WATT.
AIR FLOW/HOUR: 113.
Noise (BD/A): 40.
SIZE: 3.
Frame dimensions (mm²): 149.
CUTOUT DIMENSIONS (MM²): 122.
