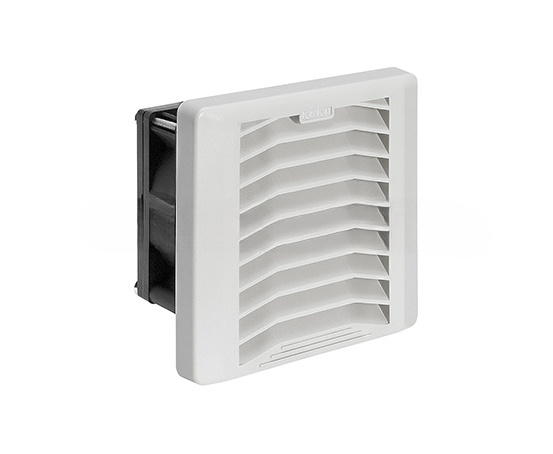

PANEL FAN/FILTER UNIT 230VAC S6
SKU: FU-9806C1 P2A23
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Complete filter/fan units in the FU98 series:
A complete filter fan assembly includes the fan, mounting frame, replaceable filter, and internal finger protection.
It installs easily as a ventilator for electrical cabinets and panels by mounting via a panel wall or door.
Buy currently uses Select Automation shop pricing and checkout.
AC filter and fans:
FU98A series.
Fan type: KA2509.
SUPPLY VOLTAGE: 230 VAC.
POWER: 61.6 W.
AIR FLOW/HOUR: 668.
NOISE (Bd/A): 70.
SIZE: 6.
Frame dimensions (mm²): 332.
CUTOUT DIMENSIONS (MM²): 292.
Features:
Temperature: -10°C to +85°C.
Polyurethane foam gasket with permanent sealing.
Self-lubricating ball-bearing fans with shielding.
Material: RoHS-approved ABS self-extinguishing UL94V-0.
