Signal Converter Frequency Analog - Serial RS232-RS485 FU210
SKU: FU210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

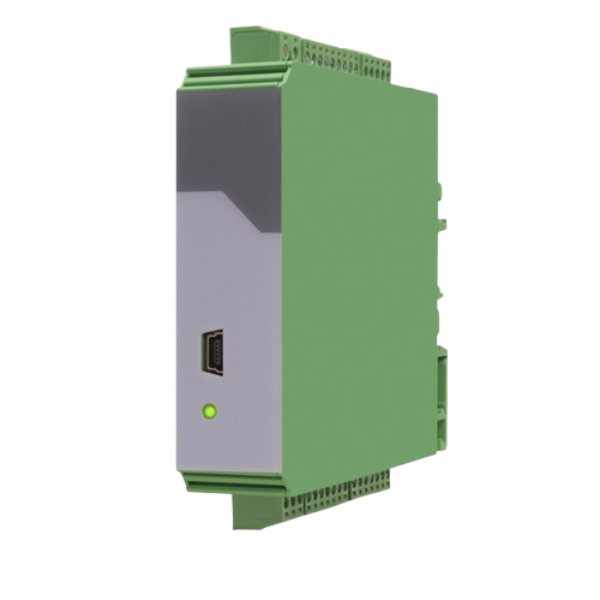

The Motrona FU210 Signal Converter is made to process incoming signals like velocity or frequency data and transform them into digital data via Modbus RTU or an analog measured variable (current/voltage) that may be freely scaled.
It is a strong and adaptable instrument for a range of industrial uses.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Pulse Inputs: A, B (HTL), A, /A, B, /B (RS422, HTL).
Input Frequency: Up to 1 MHz (RS422), 200 kHz (HTL).
Analog Output: ±10 V or 0/4 ... 20 mA, 16-bit resolution.
Serial Interface: RS232 and RS485 for configuration and serial readout.
Power Supply: 18 ... 30 VDC.
Housing: Snap-on housing for top hat rail (EN 60715).
Setup: Via operator software OS6.0.
