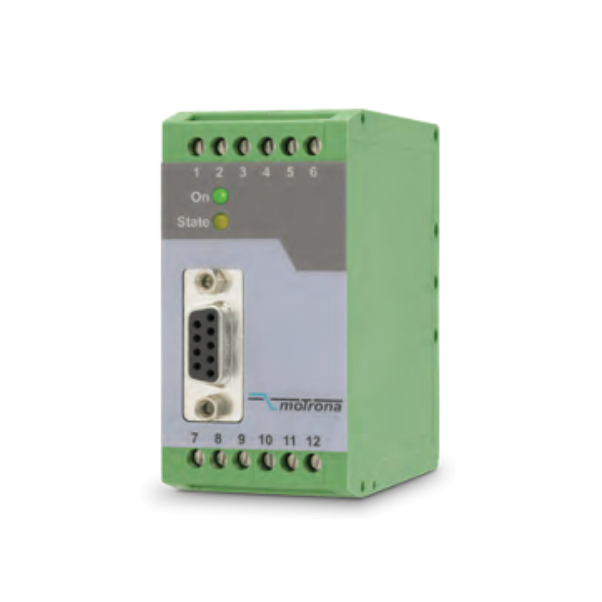

Converter frequency to Analog-Serial for speed signals
SKU: FU252
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For speed signals, convert frequency to analogue or serial.
A dual-design compact signal converter.
Including adaptable features and pulse inputs for two incremental encoders or measurement systems.
The module creates an analogue signal (voltage or current) by converting a frequency as well as the sum, difference, product, or ratio of two frequencies.
Simultaneously, the output of the two attached encoders is translated into serial format and made available by the embedded RS232 interface.
The device is quickly and easily mounted on a DIN rail in the control cabinet using a time-saving Snap-on device.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Frequency Range: 0.1 Hz to 1 MHz.
Input Types:
HTL (A, B, 2 x 90°).
TTL/RS422 (A, /A, B, /B).
Analog Output:
Voltage: ±10 V.
Current: 0/4 … 20 mA.
Output Polarity: ± follows rotation direction (phasing A / B).
Power Supply: 18 … 30 VDC.
Interfaces:
RS232.
RS485.
Conversion Time: 1 msec.
Accuracy: 0.1%.
Mounting: Snap-on housing for DIN rail (EN 60715).
Additional Features:
Scalable 14-bit analog output.
Adjustable floating average filter.
Free programmable linearization curves.
Easy setup via TEACH procedure or PC software.
