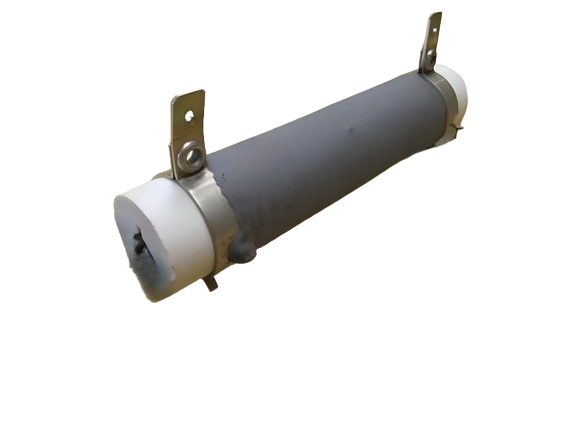

FZ T100 18W Tubular Fixed Resistors.
SKU: FZ-63x16L
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Technical description:
Cemented wire wound tubular fixed resistor, IP00 protection level, for soldering on printed circuit boards, mounting, and connecting with soldering clips horizontal to the mounting surface.
Buy currently uses Select Automation shop pricing and checkout.
Special features:
Connection and mounting directly by means of the resistor soldering clips.
Mounting directly on PCB.
Electrical data:
Power dissipation: 18W.
Ohm value production range: 0.39 Ohm – 10 k Ohm.
Degree of protection: IP00.
Connection: on soldering clips.
Voltage range: up to 3 x 500 VAC and derived DC voltages.
Mounting: for integration into device.
Typical application: Braking resistor, Discharging resistor, Filter resistor and Current limitation resistor.
