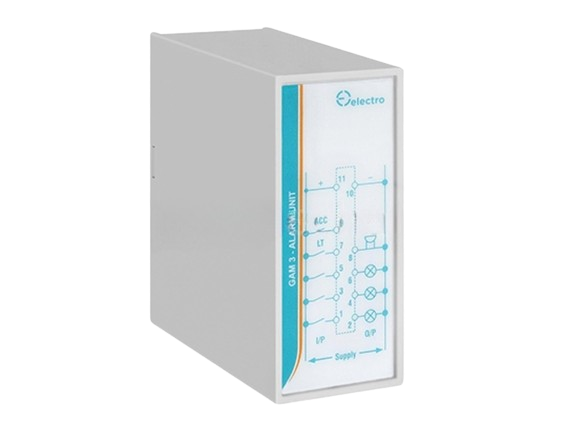

CIRCUIT ALARM MODULE 12VDC
SKU: GAM3012D
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Module for Alarm:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Alarm module for basic annunciator panels that manages alarm signals and produces the proper output.
By connecting all the modules' common terminals, the system can be enlarged.
Prior to being accepted, the flashing alarm outputs are started by a flasher unit (R1F).
Buy currently uses Select Automation shop pricing and checkout.
Features:
Extension of Flasher Input.
Output 10A SPDT alarm accept facility for hooters.
Standard 1 amp testing equipment.
Three alarm inputs that are typically open.
Three alarm outputs that are typically open.
Specifications:
DESCRIPTION: Control alarm signals.
CONTACT: 4 x 5A SPDT.
ALARM INPUTS: 3 N/O (positive common).
ALARM ACCEPT: N/O (positive common).
LAMP TEST: N/O (positive common).
FLASHER: 30 flashes per minute.
RATED VOLTAGE: 250V.
MECHANICAL LIFE: 10x106 cycles.
PROTECTION INDEX IP: IP 20.
OPERATING TEMPERATURE: -10 to + 50°C.
STORAGE TEMPERATURE: -50 to + 85°C.
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
