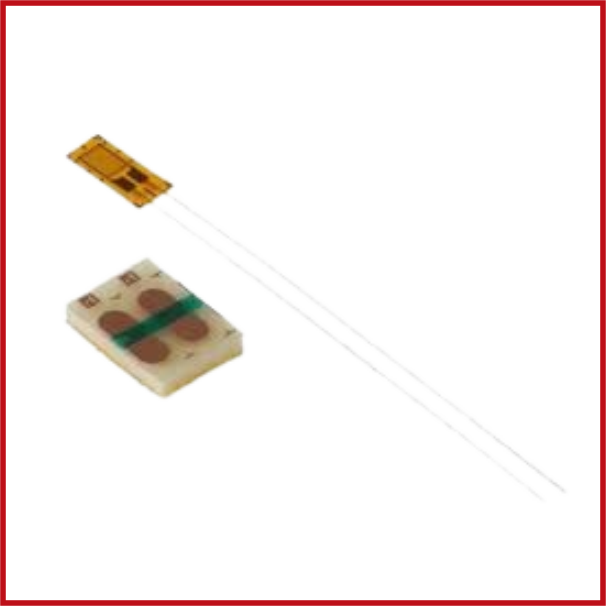

PRO Wire Lead Strain Gauge 3.5mm 1200-30 oC + 80 oC
SKU: GAU-0001-H06
Sold by Select Automation
Final price R 415.07
R 360.93 excl. VAT
Availability: In Stock (10 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PRO Wire Lead Strain Gage is a precision resistance strain gage that measures mechanical strain by detecting slight changes in electrical resistance as the bonded surface is stretched or compressed.
With a gage length of 3.5mm and a nominal resistance of 120Ω, it is ideal for experimental, educational, industrial, and load/force measurement applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Wire Lead Strain Gauge.
Sensor Type: Low Profile.
Gauge Resistance: 120Ω.
Force Measured: Compression and Tension.
Overall Dimensions: 9.5 × 3.5mm.
Width: 3.5mm.
Gauge Length: 5mm.
Gauge Factor: 2.1.
Terminal Type: Wire Lead.
Minimum Operating Temperature: -30°C.
Maximum Operating Temperature: +80°C.
Material: Copper-nickel alloy strain element.
Integral Lead Length: 30mm.
Application: Static and dynamic strain measurement, force measurement, structural testing and experimental applications.
