HBWC-35-125-6-3VR-HB
SKU: GAU-0002-H06
Sold by Select Automation
Final price R 8,912.91
R 7,750.36 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

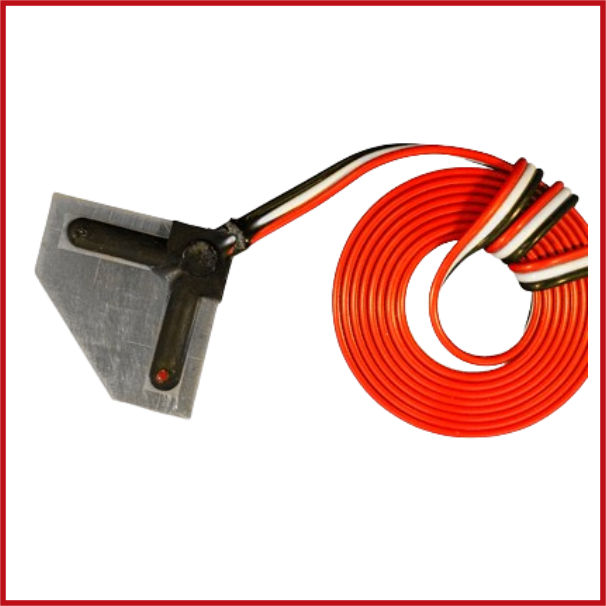

The HBWC-35-125-6-3VR-HB is a waterproof, weldable strain gage.
It is intended for monitoring mechanical strain on metal structures and components in severe industrial settings.
The precision foil sensing element is mounted on a shim and constructed as a half-bridge, allowing for precise measurement of tension and compression.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Waterproof Weldable Strain Gauge.
Nominal Resistance: 350Ω.
Gauge Factor: 2.0 nominal.
Active Gauge Length: 0.125 inch / 3.175mm.
Temperature Compensation: 6 ppm/°F.
Bridge Configuration: Half Bridge (HB).
Lead Wire Type: Vinyl Ribbon (VR).
Shim Length: 1.06 inch / 26.9mm.
Shim Width: 1.06 inch / 26.9mm.
Operating Temperature Range: -45.5°C to +82°C.
Application: Static and dynamic strain measurement, structural monitoring, industrial testing and mechanical stress analysis.
