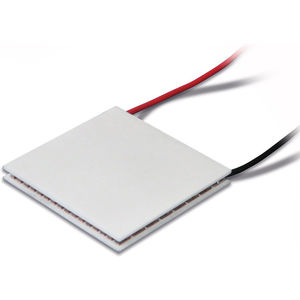

Thermal Generators, Seebeck module, 0.2 W, 225 °C
SKU: GCG
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Thermal generators:
The Peltier effect also works in the reverse direction.
The Seebeck effect generates electrical voltage from temperature differences.
We provide a wide choice of Seebeck elements with varying power levels.
Additionally, we provide two-size ready-made thermal generators.
They have an aluminium plate with threaded boreholes on both the cold and warm sides for quick and easy installation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power max (W): 0.2.
Temperature max (°C): 225.
Length (mm): 9.1.
Width (mm): 9.9.
Height (mm): 2.3.
Internal resistance (Ohm): 8.85.
Thermal resistance (K/W): 30.03.
Open-circuit voltage (V): 5.4.
Short-circuit current (A): 0.6.
