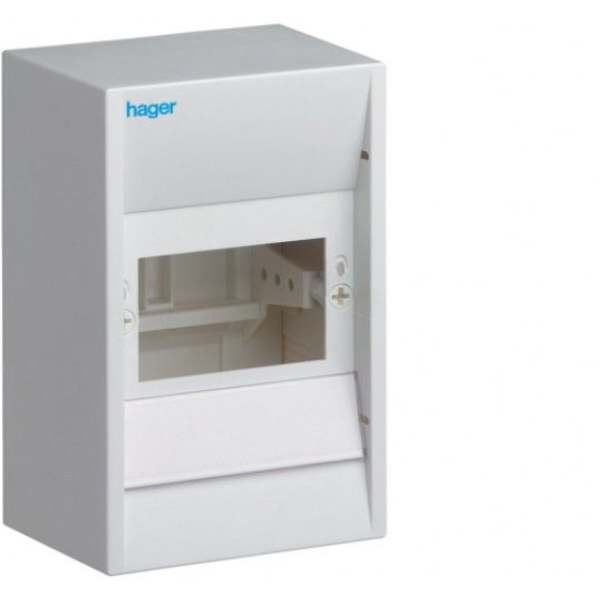

4 WAY SURFACE MCB SHROUD
SKU: GD104B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Surface mounting compatible, the GD104B is a sturdy, small enclosure from the MINI GAMMA series.
Small circuit breakers (MCBs) and other modular devices fit perfectly in its housing, offering an elegant and well-organized option for electrical installations.
This enclosure is a well-liked option for both residential and commercial applications because of its reputation for dependability and simplicity of installation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Rated voltage: 230 V.
Installation / assembly: Surface mounting.
Rated current: 40 A.
Equipment: Includes DIN rail for mounting devices.
Number of rails: 1.
Number of queues: 1.
With zipper: No.
It has a neutral terminal block: Yes.
It has a grounding terminal block: Yes.
It has a mounting plate: No.
Number of modules: 4.
Dimensions:
Height: 180 mm.
Width: 110 mm.
Depth: 82 mm.
Number of Width Units: 4.
Lid, Door: Hinged transparent door available.
The door/lid is transparent: No.
Materials:
Material: Plastic.
Colour: White.
Colour RAL: RAL 9010 (Pure white).
Protection:
Protection index: IP30 (IP40 with door).
Protection class: II.
IK impact resistance: IK05.
IP Protection Index: IP30 (IP40 with door).
Receives lock: No.
Glow wire test: 650°C.
