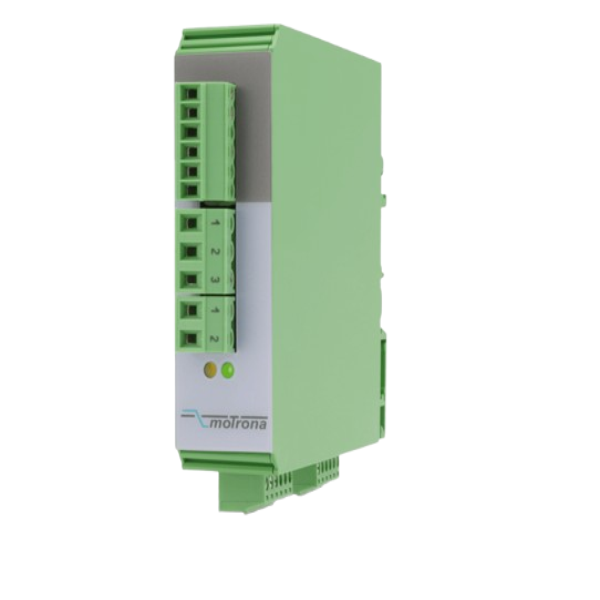

Switch between 2 SSI Encoders and a target device GI210
SKU: GI210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Motrona GI210 encoder switch is made to switch between two SSI (Synchronous Serial Interface) encoders and a target device without making contact or bouncing.
It's a little device that cascades with other devices and is simple to put on a top-hat rail in a switch cabinet.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Control Input: Format [HTL].
SSI Inputs: 2 inputs with format [RS422].
Cut-off Frequency: 100 kHz to 1 MHz.
Encoder Inputs: 2 short-circuit-proof encoder inputs.
SSI Output: 1 output with format [RS422].
Power Supply: 12 to 30 V DC.
Current Consumption: 50 mA (unloaded).
Encoder Supply: 2 x 125 mA (Vin - 2 V), short-circuit-proof.
Delay/Output/Input: 100 ns.
Operating Temperature: 0 to 45 °C (32 to 113 °F).
SSI Pause Time: Minimum 25 ns.
Switching Time: Synchronized automatically with the next SSI break.
Housing: Snap-on housing for top hat rail (EN 60715).
Indication: LEDs for input pulses.
Dimensions: 22.5 x 121 x 112 mm (8.86 x 47.64 x 44.09 inches).
