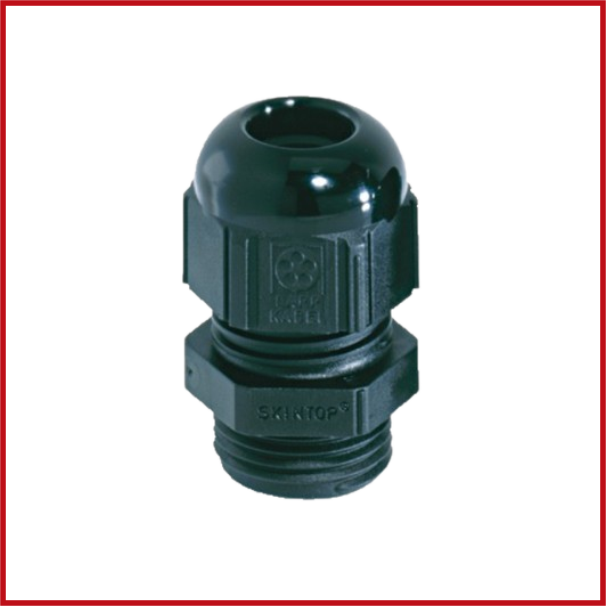

PG13.5 20.4MM PVC Compression Gland Black
SKU: GLA-0013-H09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PG13.5 20.4mm PVC Compression Gland is a small cable-entry fitting that securely routes and retains cables via electrical panels, enclosures, and junction boxes.
Its compression construction reduces strain and protects the cable entry from dust and moisture.
The PG13.5 size has a thread outer diameter of 20.4mm and is usually used with cables ranging in diameter from 6 to 12mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: High-quality PVC.
Thread Diameter: PG13.5 with an outer diameter of 20.4 mm.
Compress Area: Suitable for cables with diameters ranging from 6 mm to 12 mm.
Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
Weight: Approximately 0.024 kg (24 grams).
Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
Flame Protection: Glow wire test 750°C according to EN60695-2-11.
Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
Colour: Black.
Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
