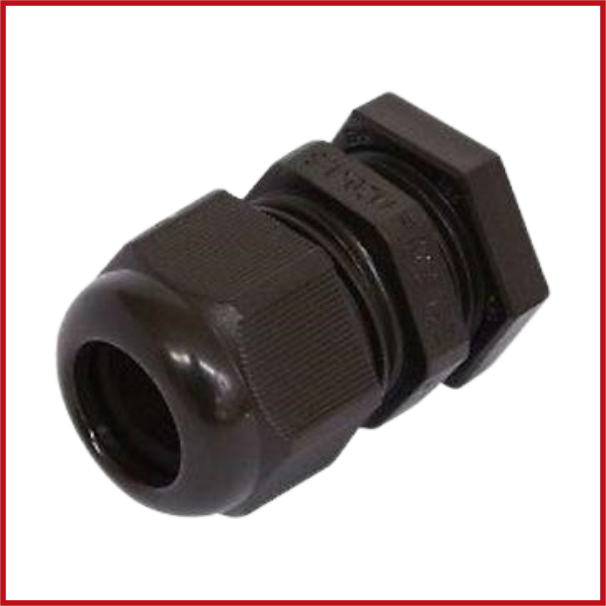

PG19 24MM PVC Compression Gland Black
SKU: GLA-0015-H09
Sold by Select Automation
Final price R 18.07
R 15.71 excl. VAT
Availability: In Stock (1 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PG19 24mm PVC Compression Gland Black is a cable-entry fitting that securely routes and retains electrical lines via panels, enclosures, and junction boxes.
Its compression mechanism reduces cable strain while also protecting the cable entry from dust and moisture.
The PG19 size has a 24mm thread diameter and is often used for cables with diameters ranging from 12 to 16mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: High-quality PVC.
Thread Diameter: PG19 with an outer diameter of 24 mm.
Compress Area: Suitable for cables with diameters ranging from 12 mm to 16 mm.
Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
Weight: 0.024 kg (24 grams).
Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
Flame Protection: Glow wire test 750°C according to EN60695-2-11.
Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
Colour: Black.
Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
