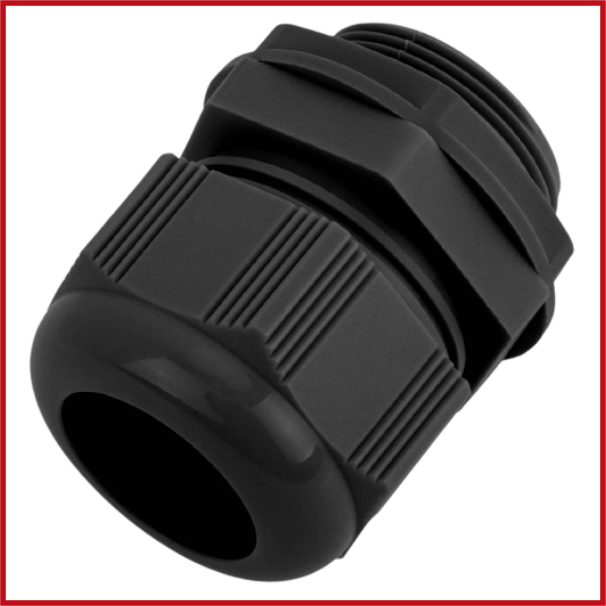

PG21 28.3MM PVC Compression Gland Black
SKU: GLA-0016-H09
Sold by Select Automation
Final price R 24.84
R 21.60 excl. VAT
Availability: In Stock (3 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PG21 28.3mm PVC Compression Gland Black is a cable-entry and strain-relief fitting that is intended to securely route and maintain electrical cables thru panels, control cabinets, junction boxes, and electrical enclosures.
Its compression mechanism firmly grips the cable while also protecting it from dust, moisture, and mechanical stress.
The PG21 gland has a 28.3mm thread outer diameter and is appropriate for cables with diameters ranging from 13 to 18mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: High-quality PVC.
Thread Diameter: PG21 with an outer diameter of 28.3 mm.
Compress Area: Suitable for cables with diameters ranging from 13 mm to 18 mm.
Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
Weight: 0.024 kg (24 grams).
Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
Flame Protection: Glow wire test 750°C according to EN60695-2-11.
Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
Colour: Black.
Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
