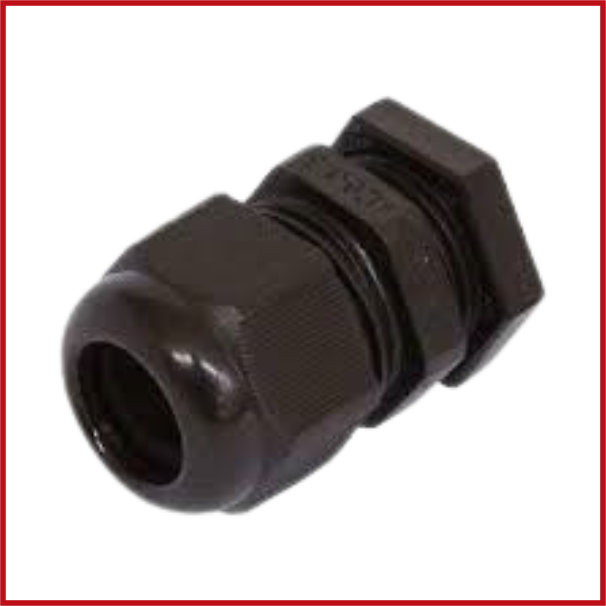

PG7 12.5mm PVC Compression Gland Black
SKU: GLA-0017-H09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PG7 12.5mm PVC Compression Gland Black is a strain-relief and compact cable entry fitting for securing electrical cables thru panels, junction boxes, control cabinets, and enclosures.
The PG7 size has a 12.5mm mounting/thread diameter and is appropriate for cables ranging from 3 to 6.5mm in diameter.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: High-quality PVC.
Thread Diameter: PG7 with an outer diameter of 12.5 mm.
Compress Area: Suitable for cables with diameters ranging from 3 mm to 6.5 mm.
Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
Weight: 0.024 kg (24 grams).
Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
Flame Protection: Glow wire test 750°C according to EN60695-2-11.
Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
Colour: Black.
Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
