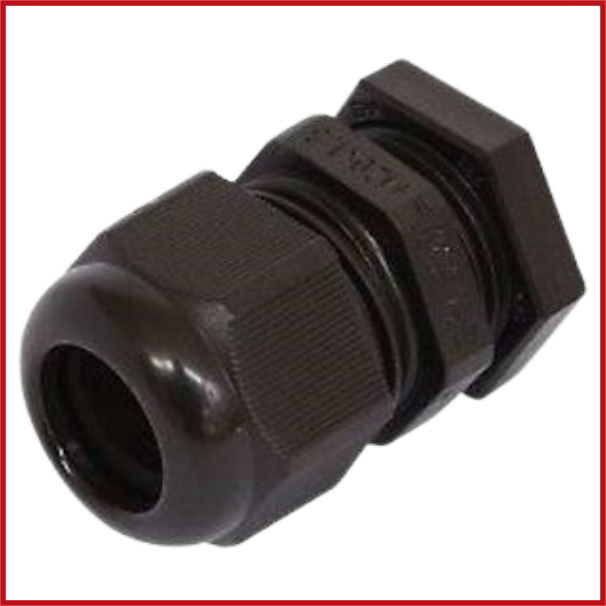

PG25 30mm PVC Compression Gland Black
SKU: GLA-0018-H09
Sold by Select Automation
Final price R 18.42
R 16.02 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The PG25 30mm PVC Compression Gland is a strong cable entry and strain relief fitting for safely routing electrical cables via panels, junction boxes, enclosures, and other electrical equipment.
The PG25 gland has a 30mm thread/entry diameter and, depending on the gland design, can accommodate cables with diameters ranging from 16 to 21mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Material: High-quality PVC.
Thread Diameter: PG25 with an outer diameter of 30 mm.
Compress Area: Suitable for cables with diameters ranging from 16 mm to 21 mm.
Dimensions: 29-43 mm (length) x 9 mm (width) x 16 mm (thickness).
Weight: 0.024 kg (24 grams).
Protection: Rated IP68 to EN 60520 and IP69K to DIN 40 050-T9, offering high levels of protection against dust and water.
Flame Protection: Glow wire test 750°C according to EN60695-2-11.
Temperature Range: Suitable for use in temperatures ranging from -40°C to +100°C.
Colour: Black.
Applications: Ideal for indoor and outdoor installations, providing secure fastening and protection for cables in various environments.
