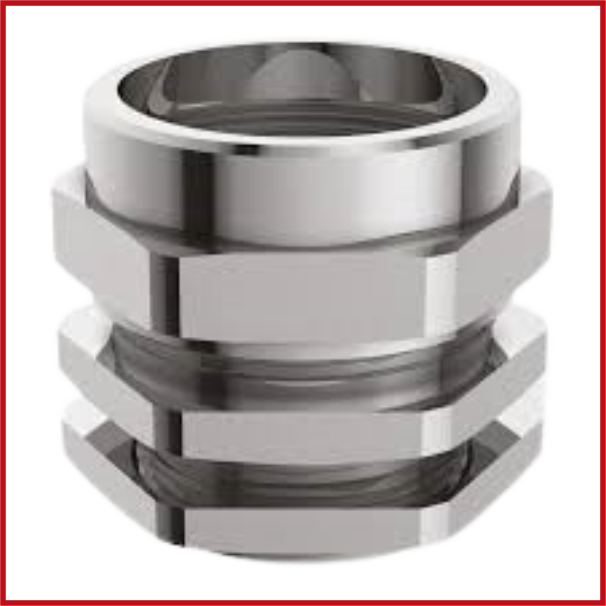

Armor Gland Size 3
SKU: GLA-0020-H09
Sold by Select Automation
Final price R 147.79
R 128.51 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Armor Gland Size 3 is a CCG BW Series captive cone cable gland used to terminate and secure steel wire armoured (SWA) and aluminium armoured cables.
It mechanically clamps the cable armour and forms an earth link without bending the armour wires.
The gland is made of nickel-plated brass and is designed for indoor use.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Armoured Cable Gland.
Gland Type: BW Captive Cone.
Gland Size: Size 3.
Model / Part Number: CCG050303.
Cable Type: Steel Wire Armoured (SWA) / Aluminium Armoured.
Cable Sheath Diameter: 26.5mm – 33.5mm.
Bedding Diameter: 26.5mm.
Armour Wire Diameter: 1.6mm – 2.0mm.
Thread Size: M32 × 1.5.
Thread Length: 10mm.
Material: Nickel-Plated Brass.
Finish: Nickel-Plated.
Overall Length: 42mm.
Width Across Flats: 42mm.
Width Across Corners: 48mm.
IP Rating: IP2X.
Operating Temperature: -65°C to +120°C.
