Gland Compression M16 Grey
SKU: GLA-0025-H09
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

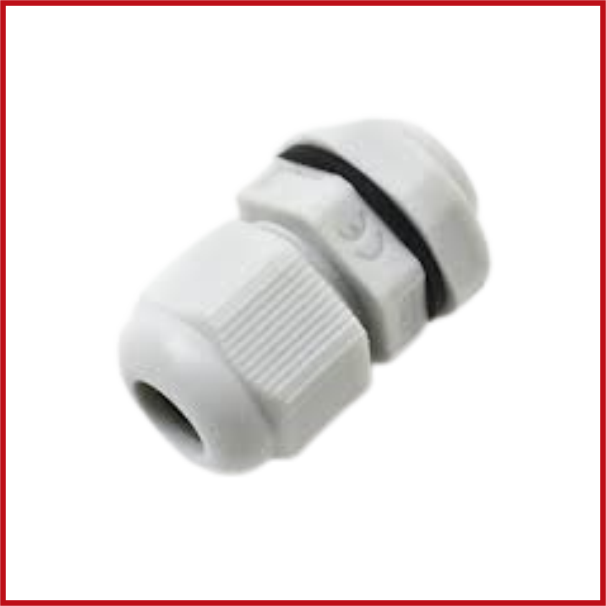

The M16 Nylon Compression Gland (Grey) is a metric cable gland that provides safe cable entry and strain relief in electrical enclosures, control panels, junction boxes, and other equipment.
It comes with a locknut and has a nylon PA66 body with an EPDM sealing element.
The gland has an IP68-10 protection certification and can take cables with a compression range of 3-7 mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Nylon Compression Cable Gland.
Reference / SKU: GLANDM16.
Series: PMG Series.
Description: Metric Compression Gland.
Thread Type: Metric.
Thread Size: M16.
Thread Length: 10 mm.
Protection Degree: IP68-10.
Body Material: Nylon PA66.
Body Certification: UL Approved.
Flammability Rating: UL94V-2.
Seal Material: EPDM.
Compression Area / Cable Diameter: 3–7 mm.
Colour: Light Grey.
Locknut: Included.
Application: Cable entry, electrical enclosures, control panels, junction boxes and electrical equipment.
Mounting Type: Panel mounting
Gland Type: Compression.
